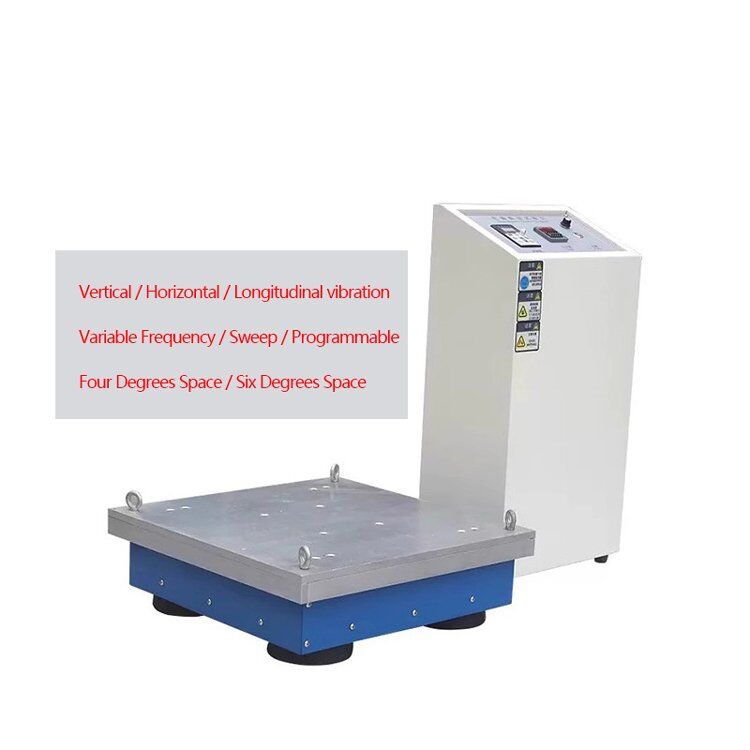

Low Frequency Electromagnetic X Y Z Vibration Test Table (RT-1301)

 Low Frequency Electromagnetic Vibration Test Equipment

Electromagnetic shakers are widely used in national defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early failures and simulate the actual working conditions assessment and structural strength test; the product has a wide range of applications, wide applicability, significant test results, and reliability. Sine wave, frequency modulation, frequency sweep, time control.

Product Details:

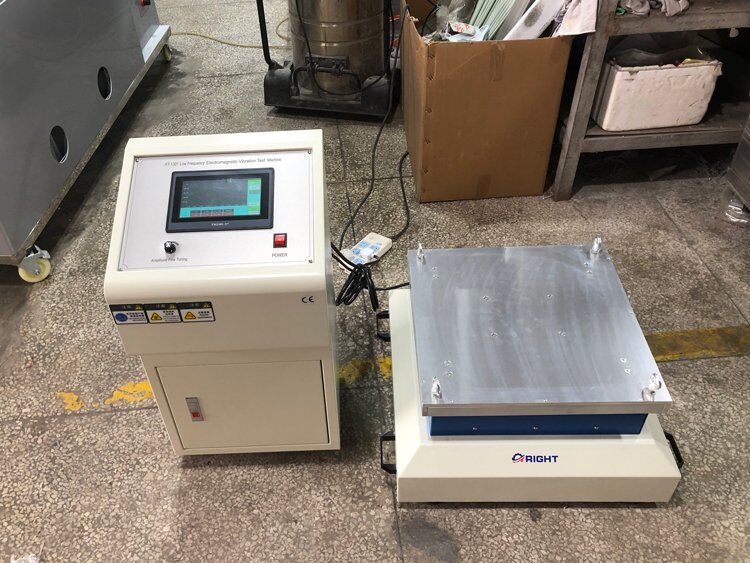

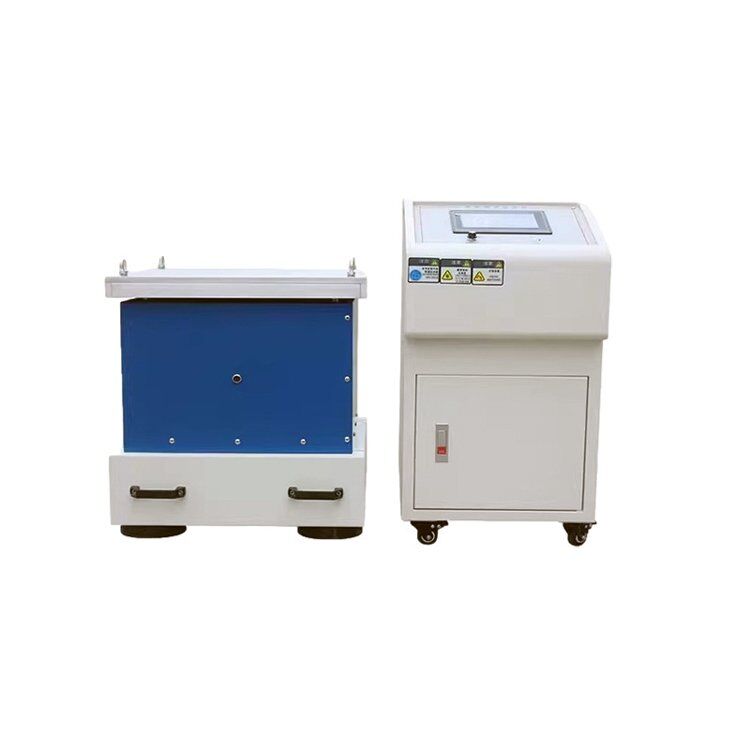

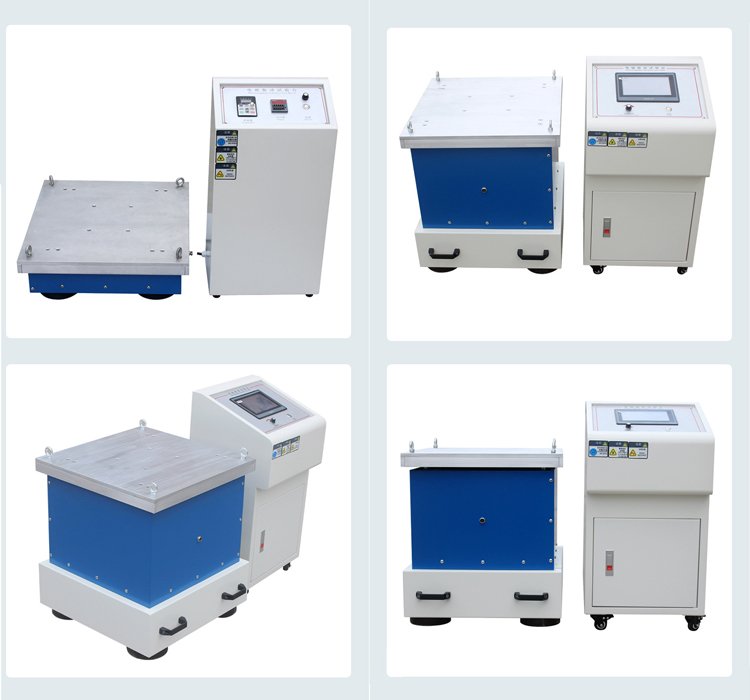

RT-1301 Low Frequency Electromagnetic Vibration Test Equipment

Instrument Features:

1. Intuitive control, easy to operate; fixed frequency, sweep frequency, program at any time convenient to switch;
2. With time timing, countdown display function.

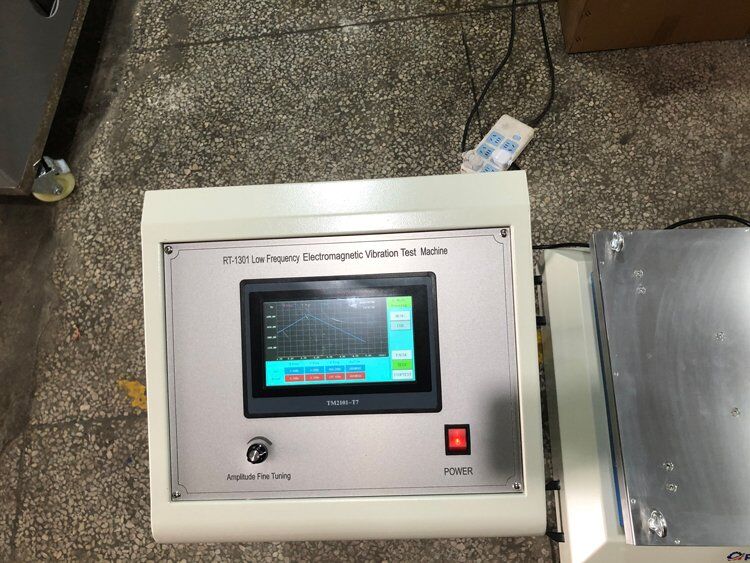

3. Touch control controller, easy and convenient operation, to solve the shortcomings of the digital display operation inconvenience.
4. Control parameters real-time synchronous display without human intervention.
5. Adopt a vibration avoidance device, easy to install, and smooth operation, without the need to install the ground fixing screws.
6. Embedded amplitude prediction program and amplitude adjustment easily.
7. Four-point synchronized excitation, table vibration uniformity.
8. Stepless adjustment of amplitude, fixed frequency, and sweep frequency operation function to adapt to a variety of tests in different industries.
9. Increase anti-jamming circuitry to solve the strong electromagnetic fields due to the control circuit in the interference;
10 curve display function, at any time you can view the frequency waveform changes.
11. Curve support direct export function is strong.
12. Work running direction automatically switches.
13. Different running directions of the vibration mode can work simultaneously.

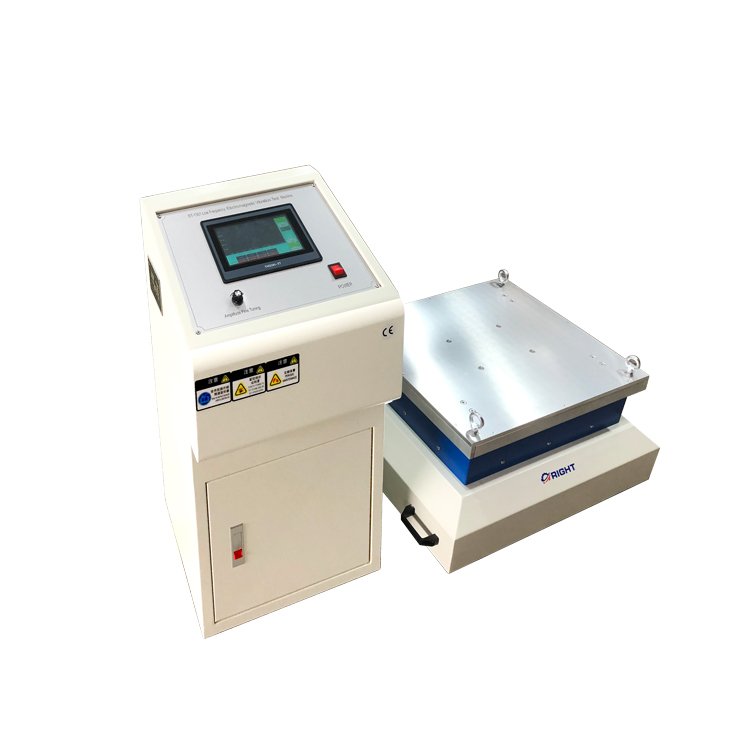

RT-1301 Low Frequency Electromagnetic Vibration Test Equipment

Specification

Product model
RT-1301  Low Frequency Electromagnetic Vibration Test Equipment
Function
sine wave (half wave / full wave), FM, sweep, programmable, multiplier, logarithm, amplitude, maximum acceleration, time control,
485 communication interface, simple acceleration
Vibration table size
L500 × W500 × H10mm and L500 × W500 × H200mm

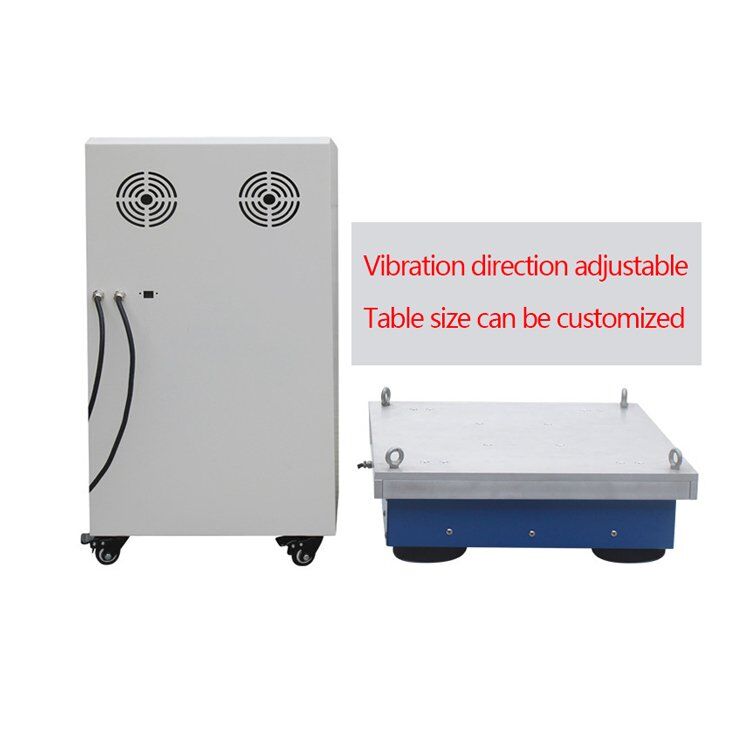

Vibration direction
vertical (Y) axis, horizontal (X) axis

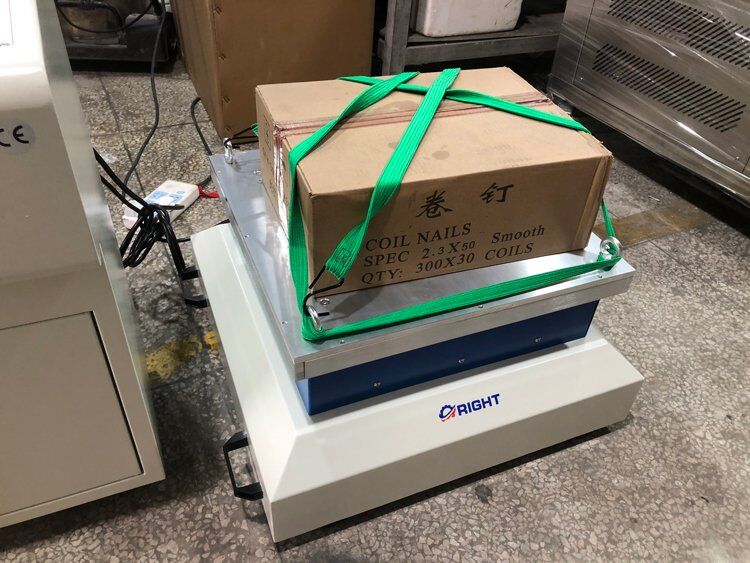

The maximum test load
0 ~ 100Kg / maximum excitation force 2000Kgf range
FM function
any adjustment 1 ~ 600Hz, in the frequency range of any frequency can not exceed one of the two 1 (maximum acceleration <20G and
maximum amplitude <5mm)
Sweep function
any adjustment 1 ~ 600Hz, (upper frequency / lower frequency / time range) can be set to true standard back and forth frequency
Vibration machine power
2.2kw
Amplitude
arbitrary adjustment amplitude 0 ~ 5mm
The maximum acceleration
arbitrarily adjust the maximum acceleration 0 ~ 20G (200m / s2)
Vibration waveform
sine wave (half wave / full wave) / maximum sine wave excitation force 2000kgf
Time control
any time can be set (unit: second)
Precision
frequency can be displayed to 0.01Hz, precision 0.1Hz
Cooling method
natural air-cooled
Temperature
-10 ° C to + 60 ° C
Humidity
0% to 90%
Noise
≤ 60 decibels
Power
220V, 50 / 60Hz

RT-1301 Low Frequency Electromagnetic Vibration Test EquipmentRT-1301 Low Frequency Electromagnetic Vibration Test Equipment RT-1301 Low Frequency Electromagnetic Vibration Test Equipment RT-1301 Low Frequency Electromagnetic Vibration Test Equipment

Standards Compliant

UL1642, UL 2054 “Lithium battery standard”

UN38.3 “Lithium Battery and Battery Pack Test Standard Regulations”

IEC62133GB / T 18287-2013 “Lithium-ion batteries for cellular phones, general specification heavy impact test”

GB 31241-2014 “Safety requirements for lithium-ion batteries and battery packs for portable electronic products”

GB-31241-2014 “Lithium-ion battery and battery pack safety requirements for portable electronic products”

QB / T2502 “lithium ion battery general specification”
