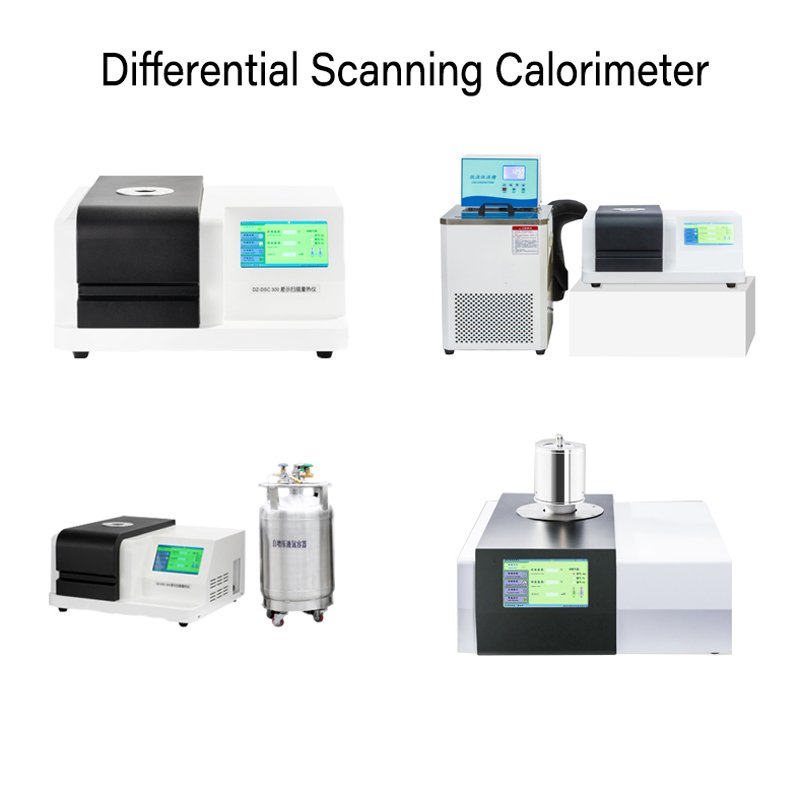

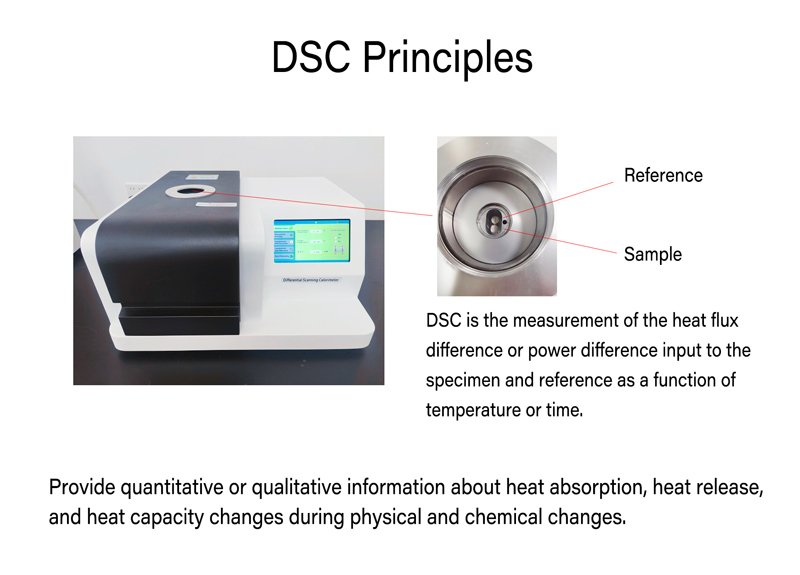

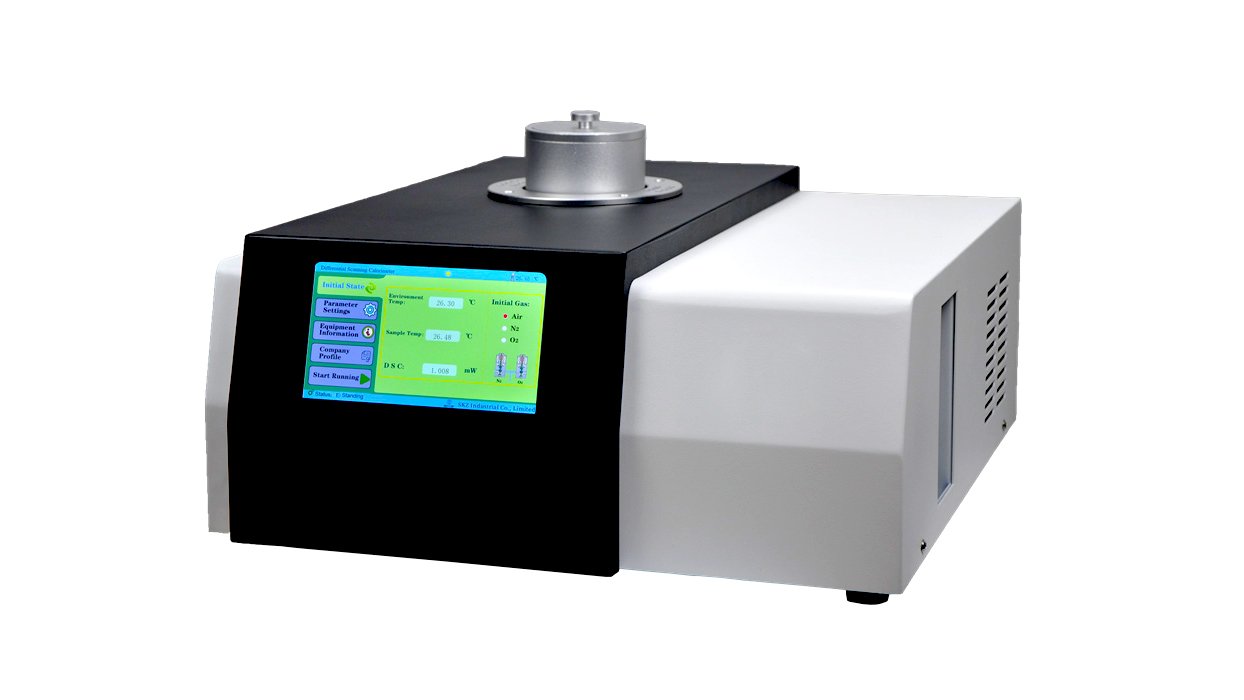

Differential Scanning Calorimeters (DSC) measure temperatures and heat flows associated with thermal transitions in a material. Typical uses include investigating, selecting, comparing, and evaluating materials’ end-use performance in research, quality control, and production applications.
ISO/TR10837:1991, ASTM D3895-1998, ASTM E 967, ASTM E 968, ASTM E 793, ASTM D 3895, ASTM D 3417, ASTM D 3418, ISO 11357-6
Model:
|
RT718-DSC100A
|

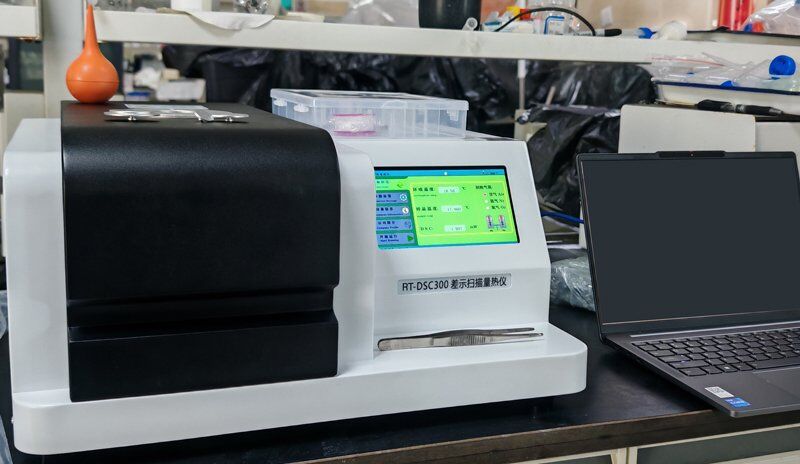

RT718-DSC300
|

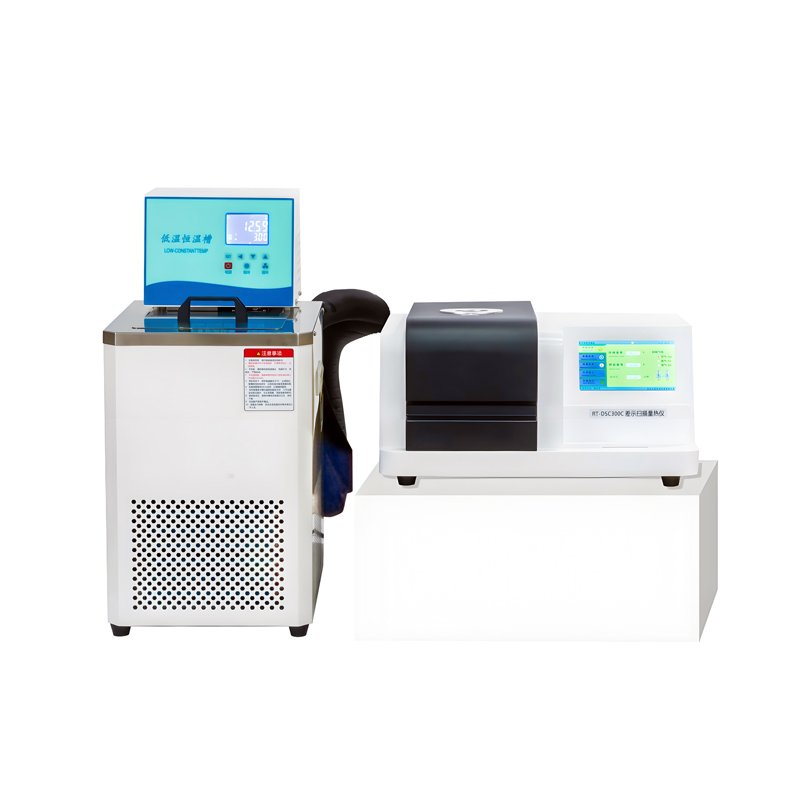

RT718-DSC300C
|
Temperature range:
|
RT ~ 600℃
|
RT ~ 600℃
|
-40℃ ~ 600℃
|
Cooling method:
|
Air cooling
|
Air cooling
|
Semiconductor cooling
|
Temperature resolution:
|
0.01℃
|
0.001℃
|
0.001℃
|
Temperature fluctuation:
|
±0.01℃
|
±0.01℃
|
±0.01℃
|
Temperature repeatability:
|
±0.1℃
|
±0.1℃
|
±0.1℃
|
Heating rate:
|
0.1~100℃/min
|
0.1~100℃/min
|
0.1~100℃/min
|
Incubation time:
|
Program settings≤24h
|
Program settings≤24h
|
Program settings≤24h
|
Temperature control:
|
Heating up, constant temperature, cooling down(Full automatic program control)
|
||
Temperature control method:
|
Rising Temperature, Constant Temperature
|
Temperature rise, thermostat, multi-stage test, temperature drop scanning
|
Temperature Rise, Thermostat, Temperature Drop
|
DSC range:
|
0~±600mW
|
0~±800mW
|
0~±800mW
|
DSC resolution:
|
0.01uW
|
0.01uW
|
0.01uW
|
DSC sensitivity
|
0.001mW
|
0.001mW
|
0.001mW
|
Atmosphere control gas:
|
Nitrogen, Oxygen(Program setting/automatic switching)
|
||
Gas flow:
|
0-300mL/min
|
0-300mL/min
|
0-300mL/min
|
Gas pressure:
|
0.3MPa
|
0.3MPa
|
0.3MPa
|
Working power supply:
|
AC220V/50Hz Or customized
|
||
Display mode:
|
24bit color,7-inch LCD touchscreen display
|
||
Data interface:
|
Standard USB interface
|
||
Parameter standard:
|
Equipped with reference materials (indium, tin), The user can correct the temperature by himself
|
||
Cooling device:
|
Air cooling device(Optional semiconductor, Liquid nitrogen refrigeration)
|
Model:
|
RT718-DSC300L
|
RT718-DSC1000
|
Temperature range:
|
-150℃ ~ 600℃
|
RT ~ 1050℃
|
Cooling method:
|
Liquid Nitrogen Cooling
|
Air cooling
|
Temperature resolution:
|
0.01℃
|
0.01℃
|
Temperature fluctuation:
|
±0.01℃
|
±0.01℃
|
Temperature repeatability:
|
±0.1℃
|
±0.1℃
|
Heating rate:
|
0.1~80℃/min
|
0.1~100℃/min
|
Incubation time:
|
0~400
|
Program settings≤24h
|
Temperature control:
|
Heating up, constant temperature, cooling down(Full automatic program control)
|
|
Temperature control method:
|
Rising Temperature, Down Temperature
|
Temperature rise, thermostat, multi-stage test, temperature drop scanning
|
DSC range:
|
0~±600mW
|
0~±600mW
|
DSC resolution:
|
0.001uW
|
0.01uW
|
DSC sensitivity
|
0.001mW
|
0.01mW
|
Atmosphere control gas:
|
Nitrogen, Oxygen(Program setting/automatic switching)
|
|
Gas flow:
|
0-300mL/min
|
0-300mL/min
|
Gas pressure:
|
0.2MPa
|
0.3MPa
|
Working power supply:
|
AC220V/50Hz Or customized
|
|
Display mode:
|
24bit color,7-inch LCD touchscreen display
|
|
Data interface:
|
Standard USB interface
|
|
Parameter standard:
|
Equipped with reference materials (indium, tin), The user can correct the temperature by himself
|
|
Cooling device:
|
Air cooling device(Optional semiconductor, Liquid nitrogen refrigeration)
|

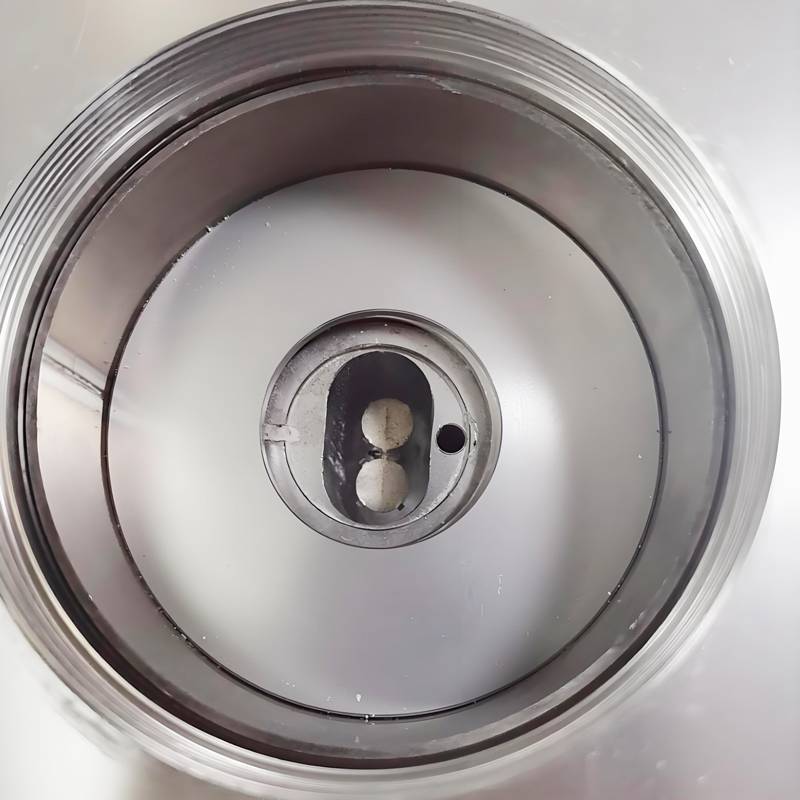

DSC series of products with high precision, the sensor is made of imported material E coupling, high accuracy, high sensitivity, good repeatability, signal acquisition circuit has shielding protection, strong anti-interference, baseline stability and repeatability is extremely high.
