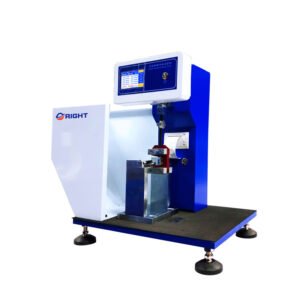

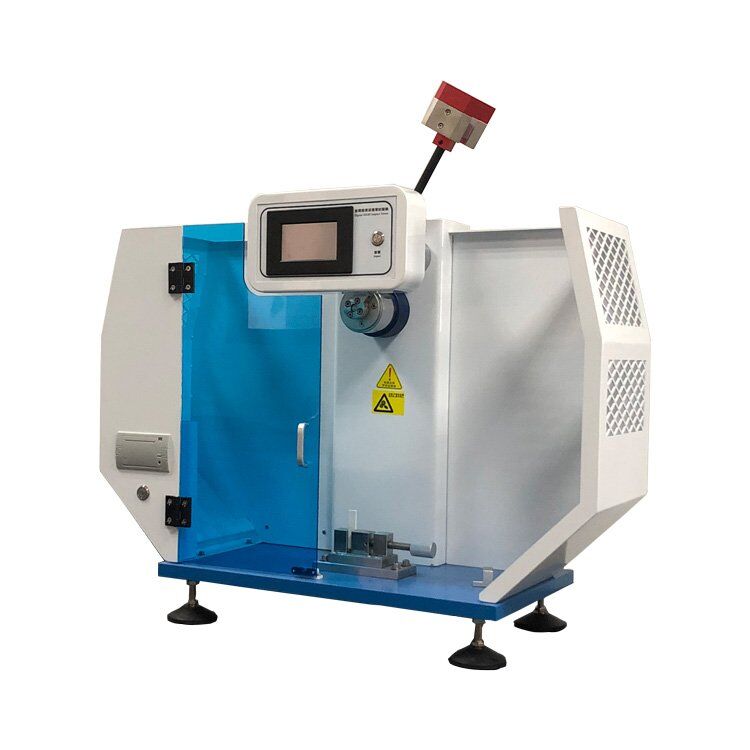

RT-704B Digital Izod Charpy Impact Tester

Additional information

Product Details:

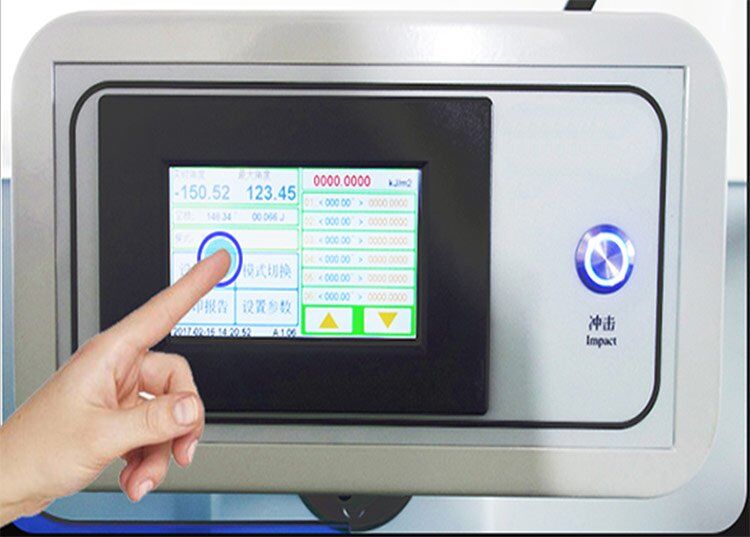

Digital Charpy Impact Tester

Summary:

The machine can simply supported beam (including test tubes), Izod impact testing machine within the following energy range can be any combination. If you use a single or a few energy The machine can be realized without any obstacles upgrade impact test machine is a combination of full energy. This series of impact testing machine having a combination of multi-energy machine, using a wide range, easy operation, high precision products notable feature is the yield and quality inspection departments, colleges, research institutes and various plastics manufacturers the necessary comprehensive type test equipment.

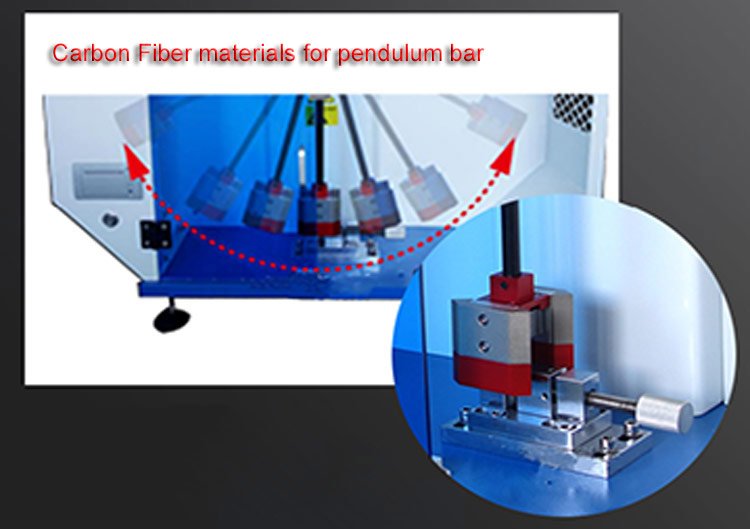

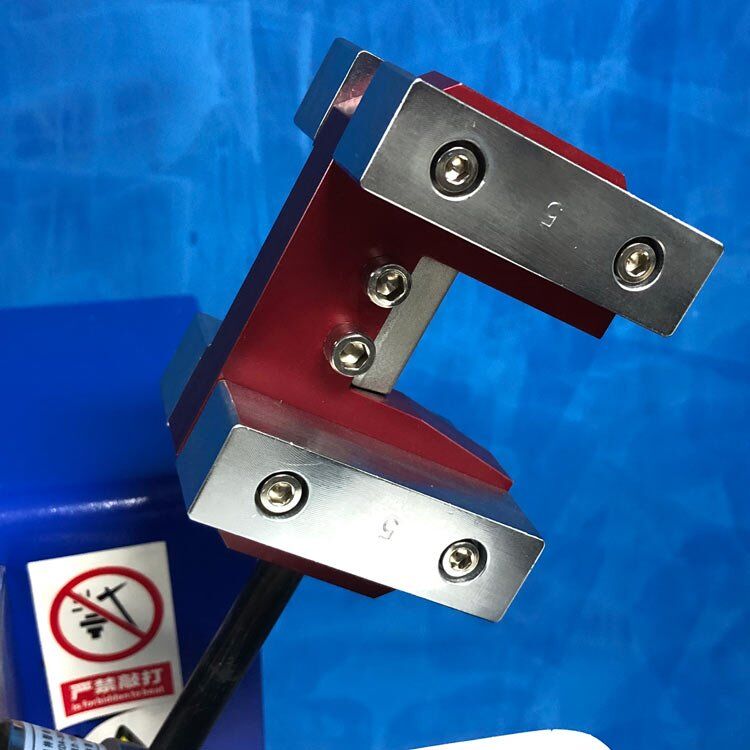

When replacing different pendulum impact, coupled with the jaw seat adjustment can do all kinds of impact test.

Applicable standards:

Charpy impact tester meet:GB/T 1043,JB/T 8762,IS0 179

Izod impact tester meet:GB/T 1843,JB/T 8761,IS0 180



Technical parameter:

1.Full energy of Charpy impact tester: 0.5,1,2,4,5,7.5,15,25,50 (J)

2.Full energy of Izod impact tester: 0.6,1,2.75,5.5,11,22 (J)

3.Model classification:

The instrument is divided into RT-704-50,  RT-704–22,  RT-704–5.5, etc.

The models for the best-selling domestic model, can completely replace imported products.



4.

Item RT-704-50 RT-704-22
Impact velocity 3.8 m/s 3.5 m/s
Pendulum energy 7.5、15、25、50J 5.5、11J、22J
Pendulum  angle 160° 160°
Cutting edge radius R=2±0.5mm R=0.8±0.2mm
Distance above the blade to jaw R=1±0.1mm R=1±0.1mm
Impact blade angle 40 mm、60mm、

70 mm、95mm、

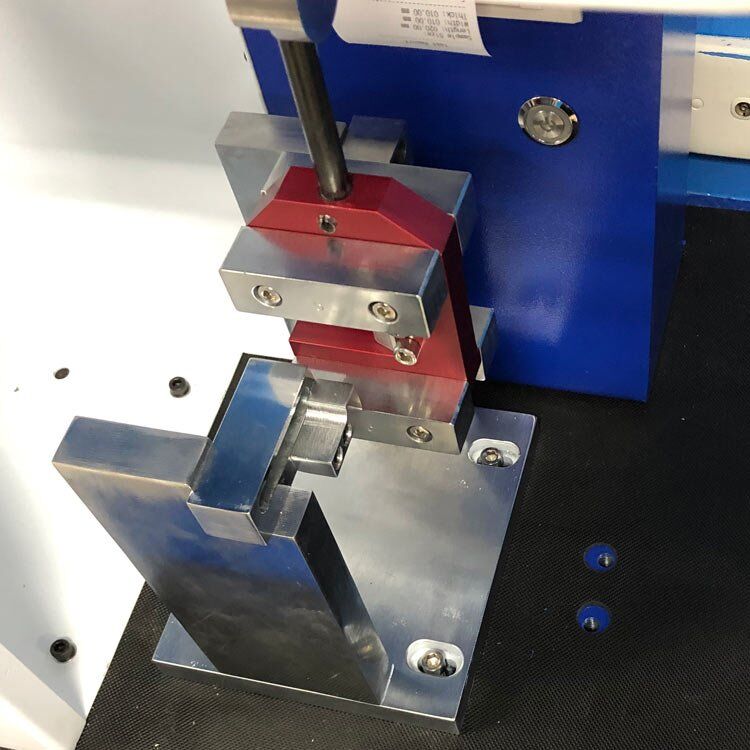

Wedge jaws,universal type
Impact energy loss 30°±l° 30°±l°
Pendulum center to center distance of the sample 0.5% 0.5%
