High Precision Digital Densitometer (RT-1906)

Category 2. Plastic Testing Machine

Additional information

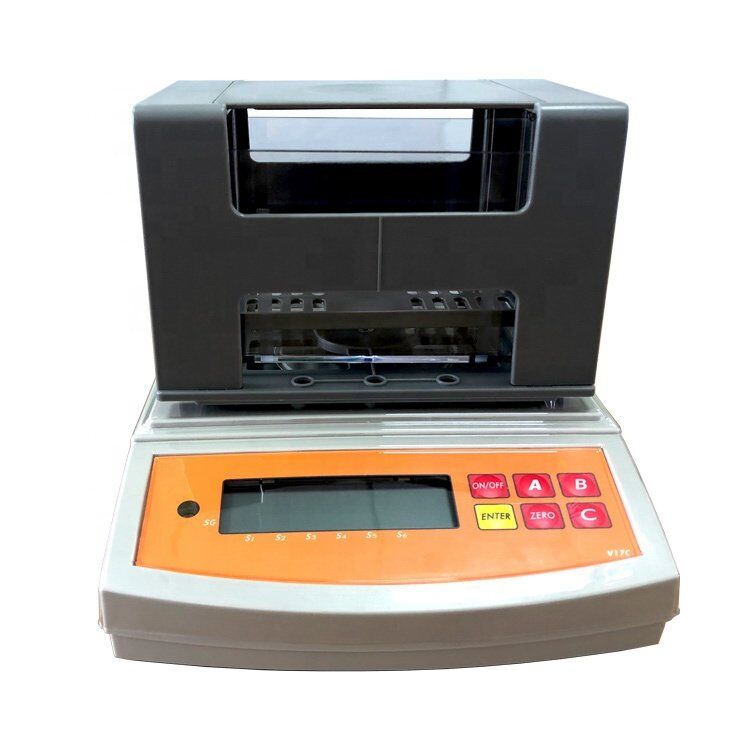

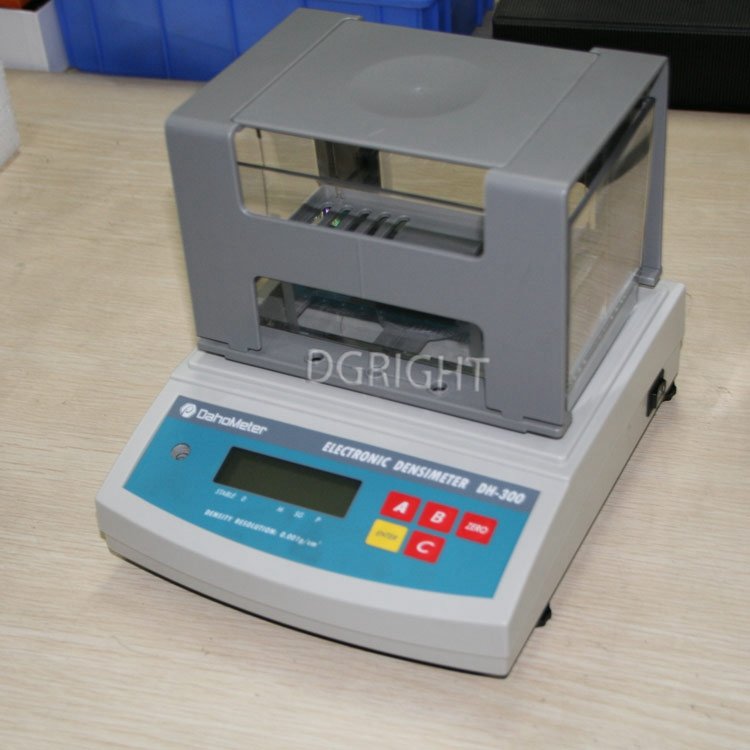

RT-1906 Digital Hydrometer Density Meter

Especially suitable for rubber, plastic, film, wire and cable, PVC pipe, powder metallurgy of powder products, oil content, density materials such as organic solvents tested.

Product Details：

Product Description

Following standards ASTM D297-93, D792-00, D618, D891 for RT-1906-300, RT-1906-600, combined Archimedes’ principle with micro-electronic technology, and based on the density of water at the actual temperature. The specific gravity of the specimen can be calculated by a microcomputer through the weight and volume that are measured twice.

Specification

Model	RT-1906-300	RT-1906-600
Density resolution	0.001g/cm3
Maximum weight	300g	600g
Minimum weight	0.005g
Mode	Solid/Granule/Foam
Solution compensation	Yes
Temperature compensation	Yes
Calibration weight	100g	200g
Testing principle	Archimedes principle

Main Functions:

RT-1906 Digital Hydrometer Density Meter is one of the densimeters that have been widely applied in industry, as the medium of water, the density value can be displayed after two steps. Compared with a traditional densimeter, there is no calculation by hand, which is more convenient.

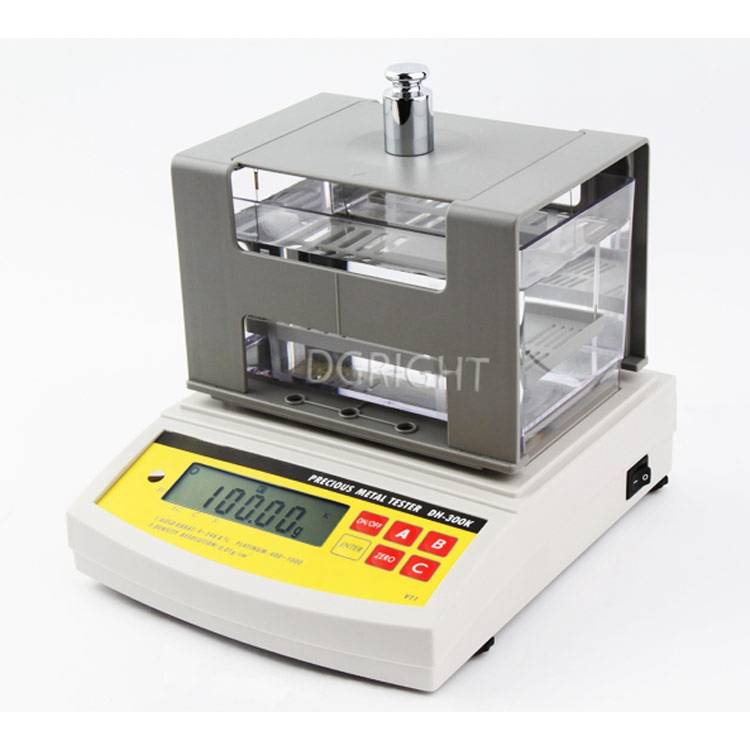

With a completed injection moulding testing plate, and the high transparency water sink that is built in imported PC. Testers can inspect the samples clearly in water. The suspension wire made up of 0.5mm stainless steel is perpendicular to the nacelle, which would not touch the water sink. Therefore, the accuracy of the test result can be ensured.DH-300 can also be applied to metal, powder,ceramics ,fireproofing materials, magnetic materials ,mechanical parts, mineral and rock, cement, precious metal, jewellery,etc.

RT-1906 Digital Hydrometer Density Meter Advantage:

1. High-performance.

2. Direct displaying data

3. Millesimal precision

Features:

1. Fasting testing, with more efficiency, can be applied in the production site and the laboratory.

2. Plastic particle, film, floating, seal ring, rubber, and calcium carbonate powder can be quickly tested.

3. Rubber DIN volume wear loss, Akron wear loss, and expansion can be read directly.

4. Function of automatic zero tracking,buzzer warning,and overload warning.

5. Function of solution compensation. Necessary if liquid other than water is used as a medium for measurement.

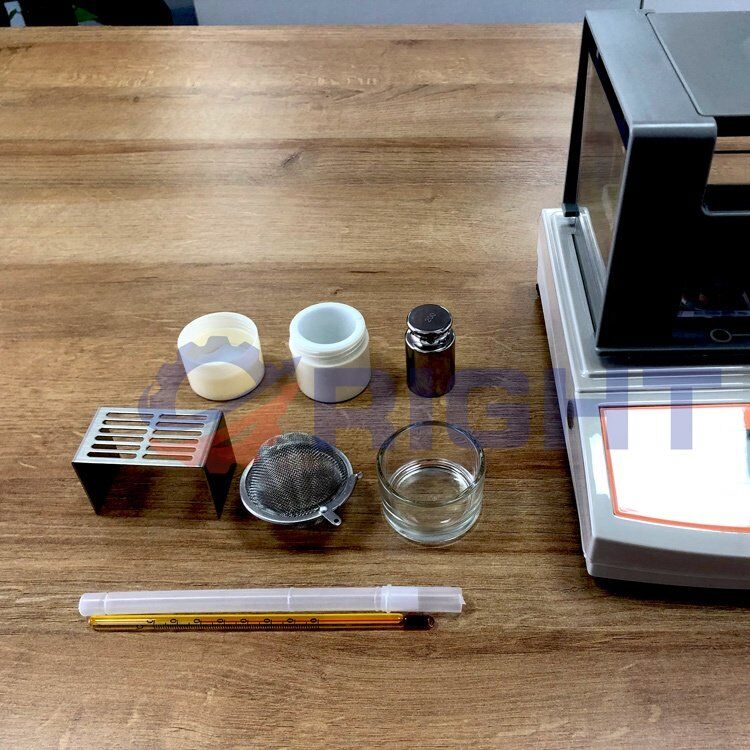

6. Adopt the completed high-capacity measurement accessories with the transparent injection moulding sink,which can resist wear,fall off,and corrosion.

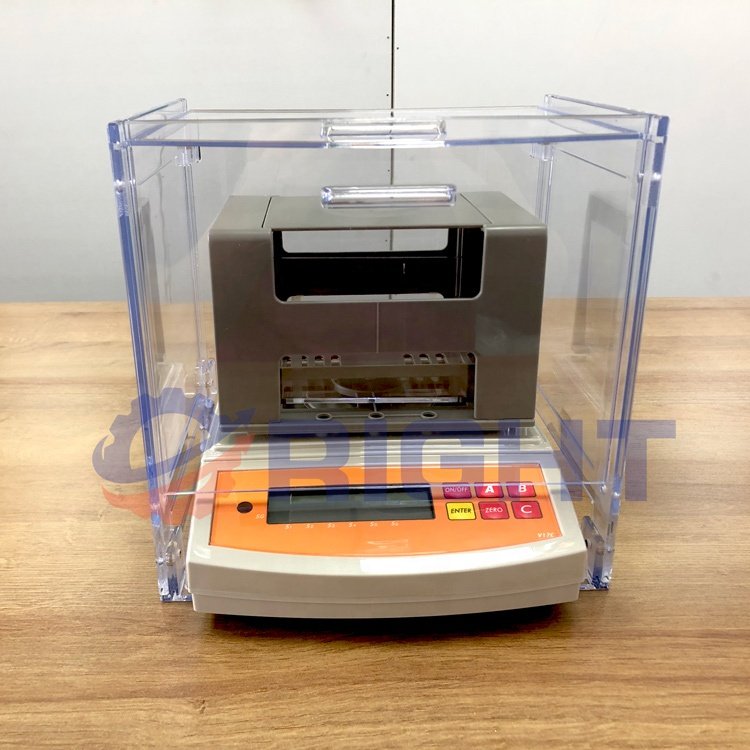

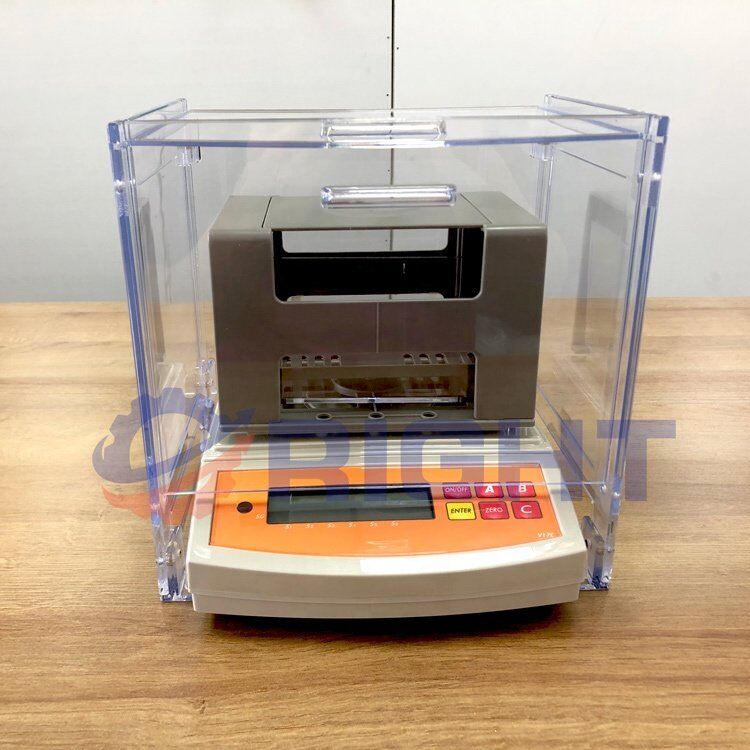

7. Adopt the completed professional windproof and dustproof cover,which makes the machine convenient and durable.

8. The interface of RS-232C is included.The printer of DE-40 is available to connect a PC with this instrument.
