Description:

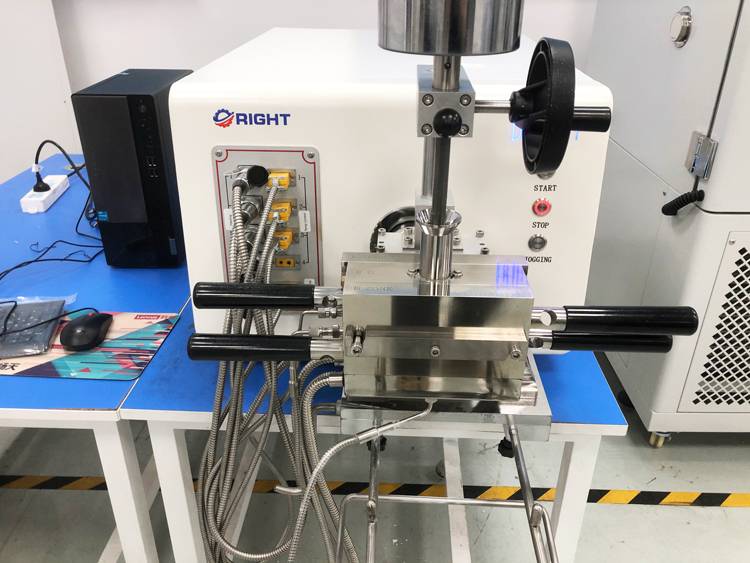

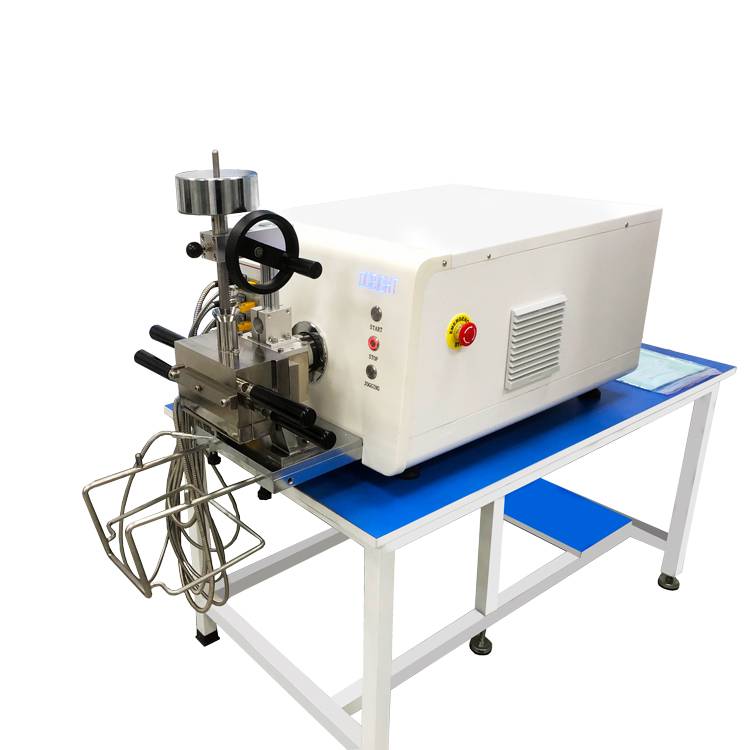

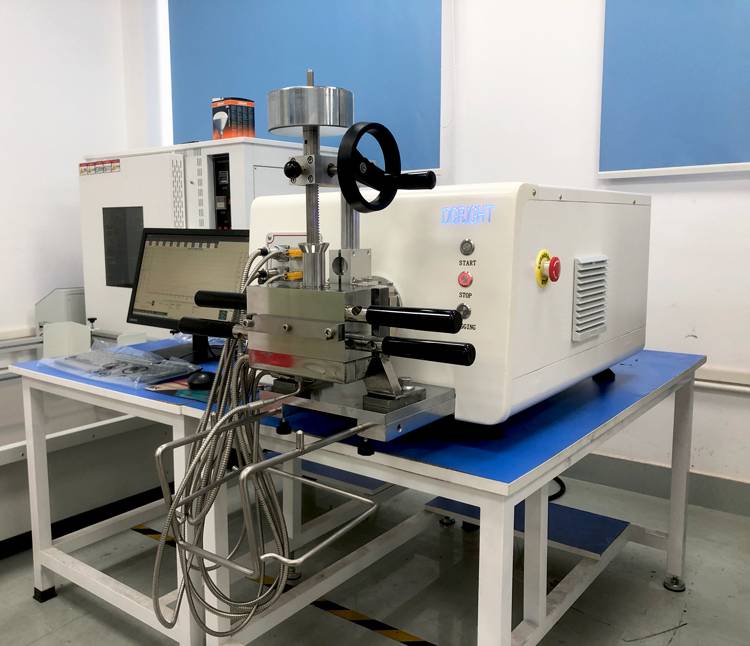

The RT-128A Desktop Torque Rheometer is used to test the processability of thermoplastics, thermosets, elastomers, ceramic molding materials, fillers, pigments, and many other plastics and plasticize materials in a practice-oriented manner that is cost-effective, efficient, reliable, and time-consuming with fewer consumables.

The RT-128A Desktop Torque Rheometer is an advanced product for measuring mixers and extruders.
With a 2KW motor, a torque measurement range of 300Nm, and step-less speed regulation from 2 to 200rpm, it is the perfect measurement drive to simulate actual production measurements using the MX30 and MX60 mixers of the MX series.

The RT-128A Economy Torque Rheometer Advantages:

• Quick and cost-effective setup.
• Additional equipment, such as mixers and extruders, can be easily connected.
• State-of-the-art software is available for all current Windows versions and is used to obtain reliable records and evaluate measurement data.
• Sweden imported mold steel, which is wear-resistant and corrosion-resistant.
• Unique process for the rotor surface.
• Siemens’ measurement and control system is accurate and stable.
• Flexible and convenient human-machine interaction.
• Precise test data, good stability, and high repeatability.
• Powerful software function: crosslinking, curing, melting, superposition.

Software:

• Temperature
• Torque
• Pressure
• Speed
• Energy

Parameters:

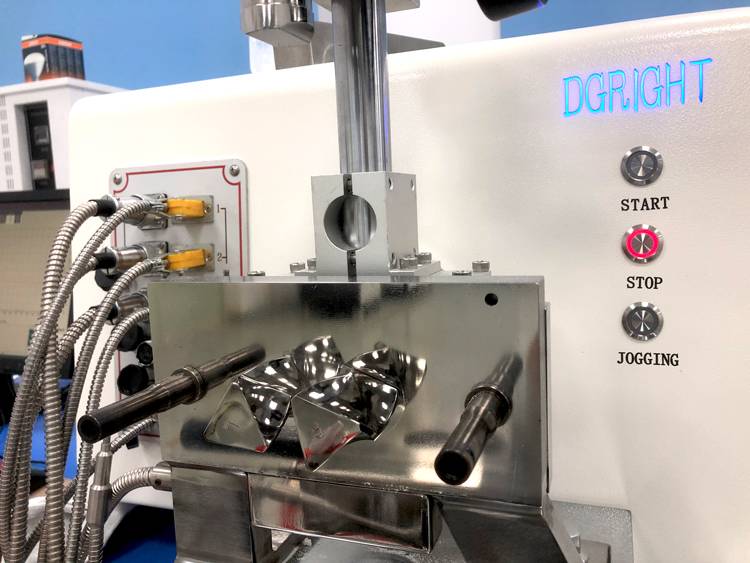

Optional Rotors:

Roller: Used for mixing thermoplastic materials, such as polyolefin, polyvinyl chloride, engineering plastics, etc.

Banbury: It is used to mix thermoplastic elastomers and is widely used in the rubber industry.

Cam: Used for mixing viscous and high torque materials such as thermoplastics, ceramic composites, and food.

Sigma: Used for mixing materials with low torque, such as food, medicine, and plastisol.

Delta: Used for mixing and crosslinking thermosetting materials.

System Software:

The supporting software consists of Mixer-mixer test and control software, Plastic-extruder test and control software, and WinNian-apparent viscosity test data processing software. The interface of Mixer and Plastic software is rich in functions that can complete measurement, setting, and control of speed, torque, temperature, and pressure. The curve window can display the curve of the above data against time in real time. The software can process and graph these data. The test report is formed using the test measurement and control software and is output by a color printer. It can also complete multiple curve superposition, curve smoothing, and other functions.

Because the RT-128A torque rheometer is an automated test instrument with a computer as the core, data acquisition, control, and processing of experimental data are all completed by the corresponding software, which is not only manifested in the convenient operation of the instrument, precise control, convenient and fast experimental data processing, and result output. More importantly, with the support of software, it can perform functions that cannot be done by traditional torque rheometers, such as measuring the shear-sensitive properties of materials with linear acceleration. Die correction is used when calculating the relationship between material apparent viscosity and shear rate.

High-cost Performance.

The design idea of the RT-128A torque rheometer is to achieve function expansion and performance improvement through software development without adding hardware devices as much as possible, so it has a high-cost performance.
