Technical Parameters

1. Display mode: 7-inch capacitive touchscreen

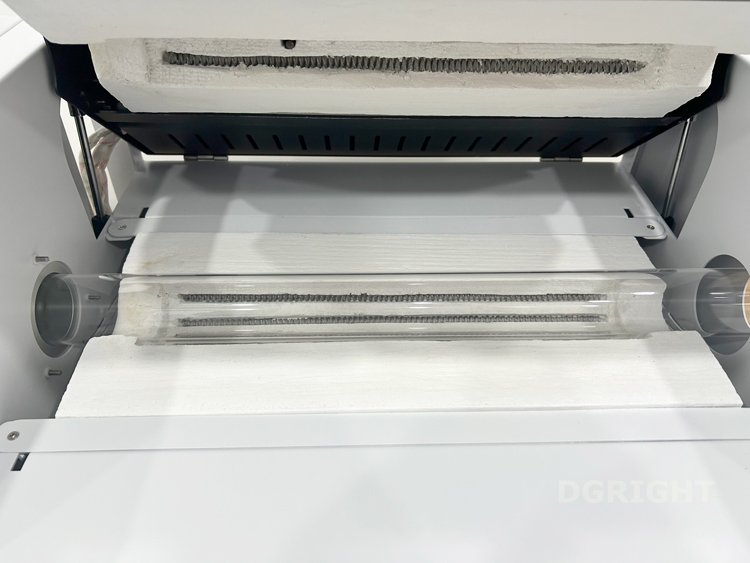

2. Quartz tube size: φ44×600±5mm
3. Furnace chamber size: Φ45×300±5mm
4. Heating element: high-temperature alloy wire
5. Heating area length: 250mm
6. Working temperature: room temperature~1150℃
7. Temperature control mode: An intelligent programmable control and segmentation program can be set.
8. Working power supply: AC220V/50HZ/60HZ
9. Sensor sensitivity: 0.1℃.

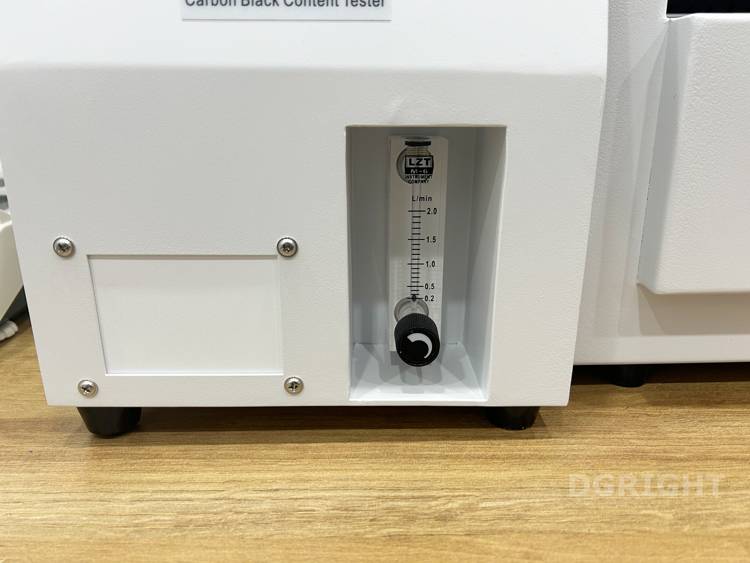

10. Airway control: two-way, automatic program switching.
11. Cooling mode: rapid cooling (≤ 20min, 900 ℃ to room temperature)
12. Number of test samples: 4 samples in one test

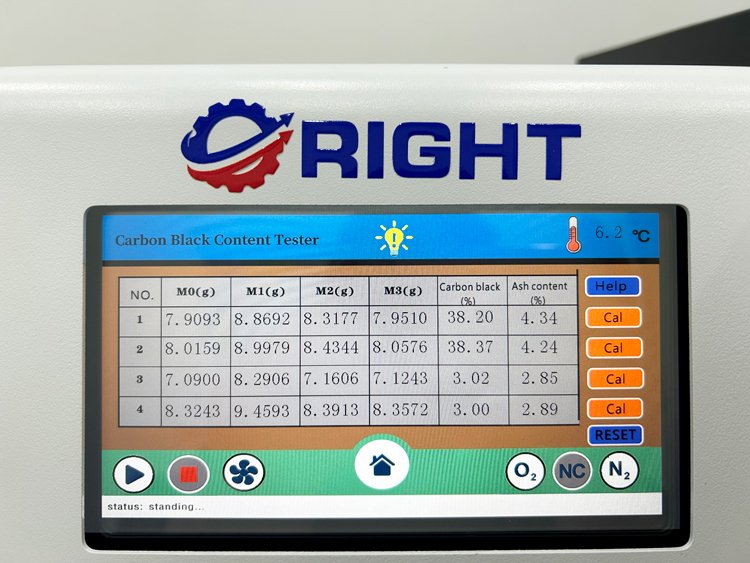

13. Data calculation: the software comes with a calculation function, one key calculation; it can automatically calculate the carbon black content and ash content.
14. Customized rail-type sample holder, easy to take and put samples

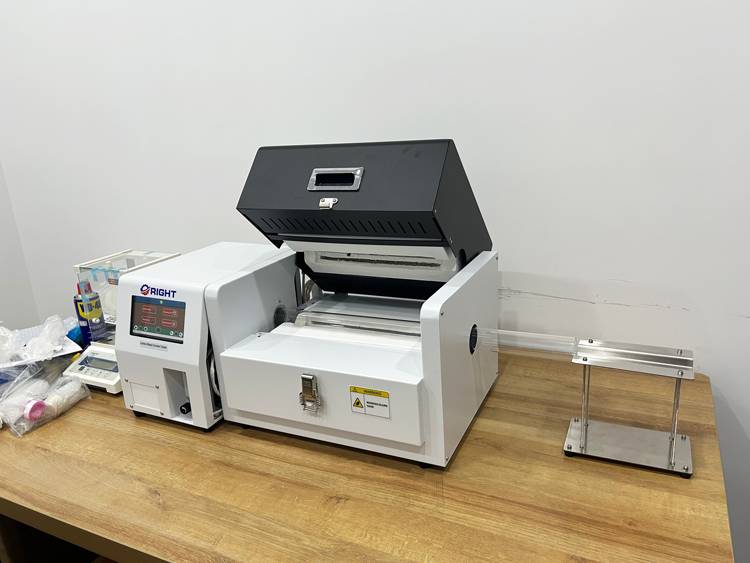

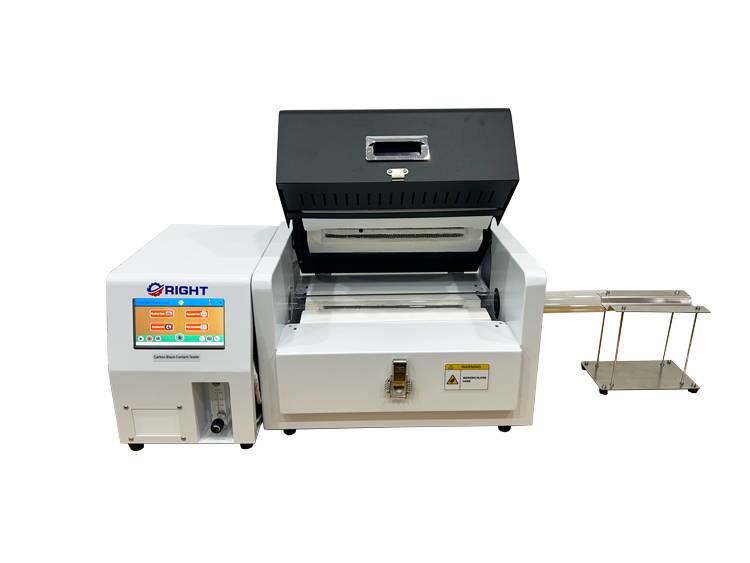

15. Open lid type, rapid cooling
16. With an exhaust gas filtering device
17. With printing function

Product Features:

1. The instrument has a beautiful appearance and structure and is easy to operate;
2. The integrated heating furnace body and control system design is convenient for the user’s instrument management.
3. With the high degree of automation, you only need to set the temperature value and heating time, and the instrument automatically heats up to the set value;
4. High precision of temperature control, extensive temperature range, and high-temperature uniformity in the furnace chamber;
5. 7-inch LCD touchscreen display, amicable operation interface, can be started by one-key operation
6. Excellent thermostat function and can set the thermostat time, high thermostat precision;
7. The instrument can be set to any group of different heating periods and can have different heating temperatures, heating rates, and constant temperature times;
8. The parameter display is comprehensive, displaying the number of setting groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
9. During the operation of the instrument, you can view the set parameters and the heating time or constant temperature.
