Lab Battery Explosion-proof Crush Squeezing Testing Machine (RT-2102)

Additional information

UL1642 Lithium Battery Crush Tester

The battery extruding and needling machine is applicable to simulate the situation of a battery being squeezed and punctured when various batteries are used, transported, stored, or treated with household wastes.

The extrusion direction of the extrusion test shall comply with the following rules: one battery is extruded only once, and the battery is qualified if it does not explode or ignite.

Product Details:

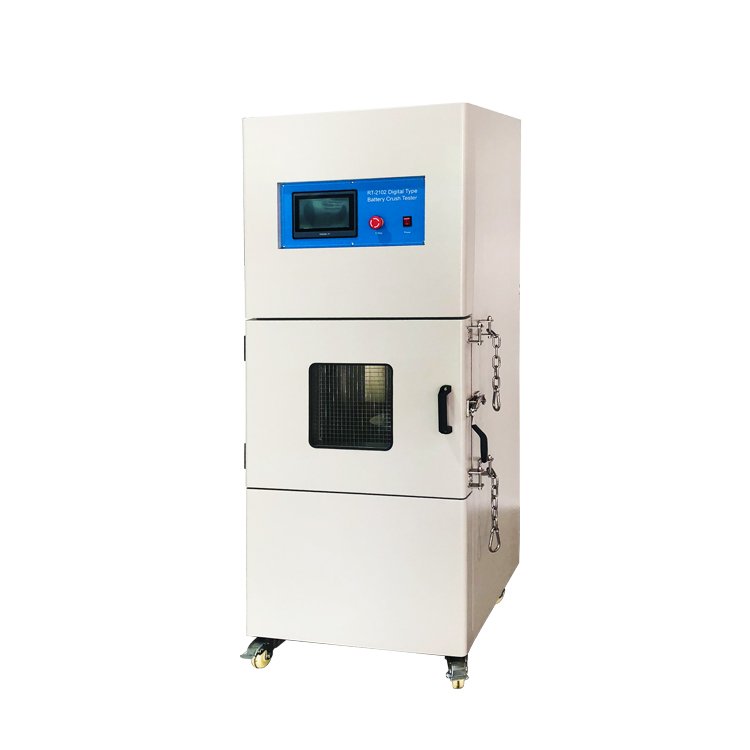

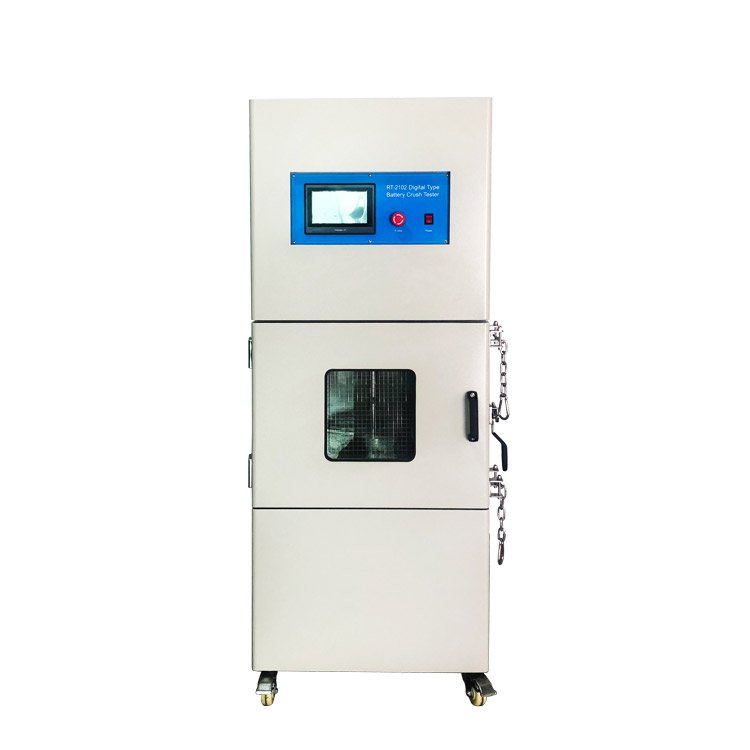

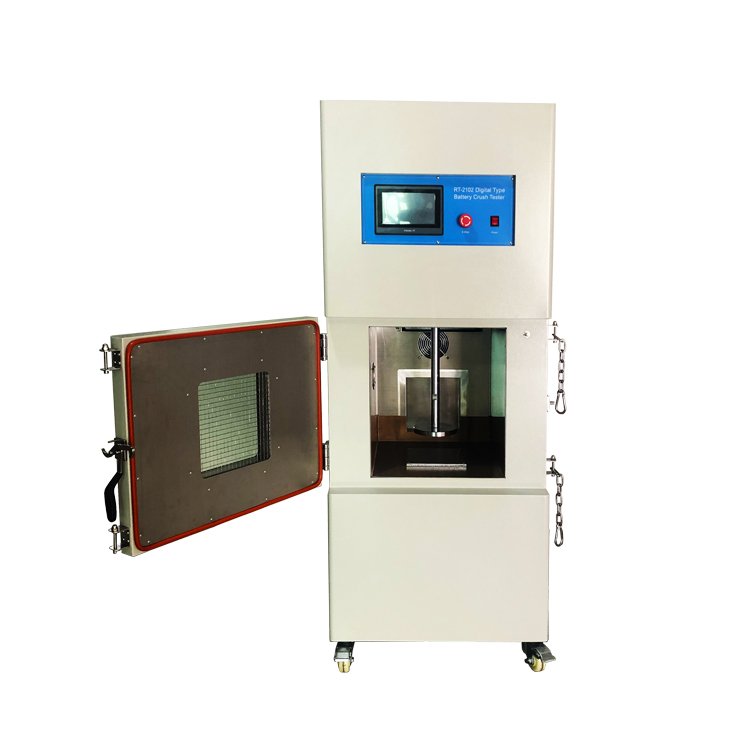

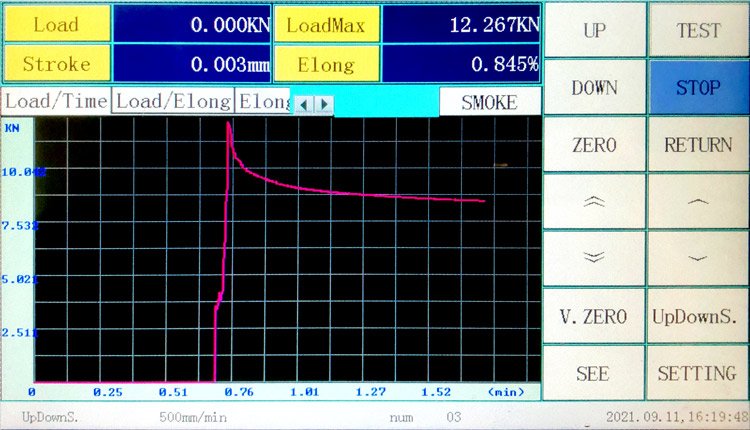

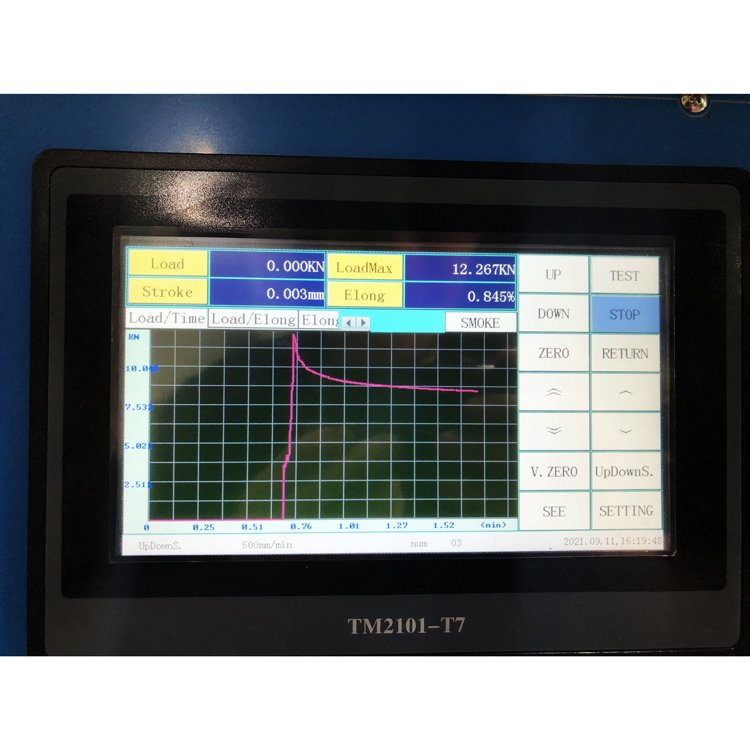

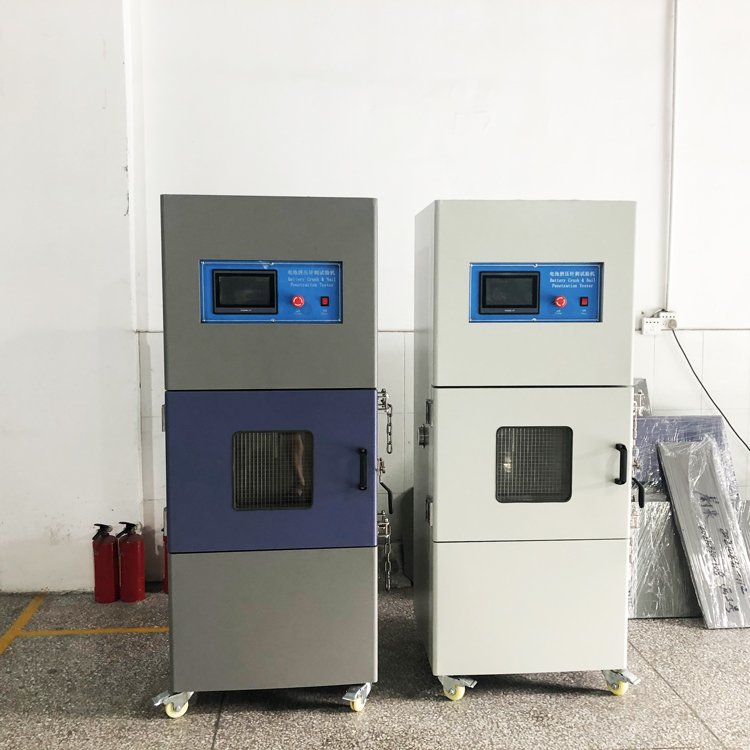

Lab Battery Explosion-proof Crush Squeezing Testing Machine

The touch-screen battery crush tester is suitable for simulating the use of batteries in the use, transportation, storage, or disposal of household waste. The battery is squeezed in the case of the battery not exploding without fire for qualified.

Specification

Product Model
RT-2102
Force Range
0~20KN(Adjustable, customized)
Tester Architecture
Free Stand & Vertical extrusion
Force Deviation
≤±1% Full-scale Range
Unit Shift
Kgf,lbf,n,kn,kpa,mpa
Crushing Velocity
1~ 900mm/min(controllable)
Crushing Velocity Accuracy
≤±1% Full-scale Range
Crushing Travel
350mm
Crushing Motion Accuracy
≤±1% Full-scale Range
Working Chamber Dimension
W400 X D450 X H400 mm
Test Terms
Force, Displacement (Deformation), Voltage, one from three projects or all three projects
Crushing Time Maintaining
0~99 Hours 99 Minutes & 99 seconds, time can be controlled to control the deformation and stop if the test is fulfilled.
Industrial Communication
PLC Computer Control, ensure stability and real-time of remote sampling, with explosion-proof function, all data can be stored and
print through computer with Excel format.
Voltage Acquisition System
One channel(customized) Resolution:1mv Acquisition Range:0-100V
Temperature Acquisition system(option) Resolution

0.1 degree

Acquisition Range: 0~1200 degrees No. of channel:2(customizable)
Auxiliary Function
Explosion-proof Pressure Release System, Exhaust System, fire-extinguishing device
Driving Method
Servo Motor Driving
Voltage Resolution
1mv
Power Input
220V 50 Hz
Overall Dimension
W750 X L720 X H1710 mm



Lab Battery Explosion-proof Crush Squeezing Testing Machine

Product Features

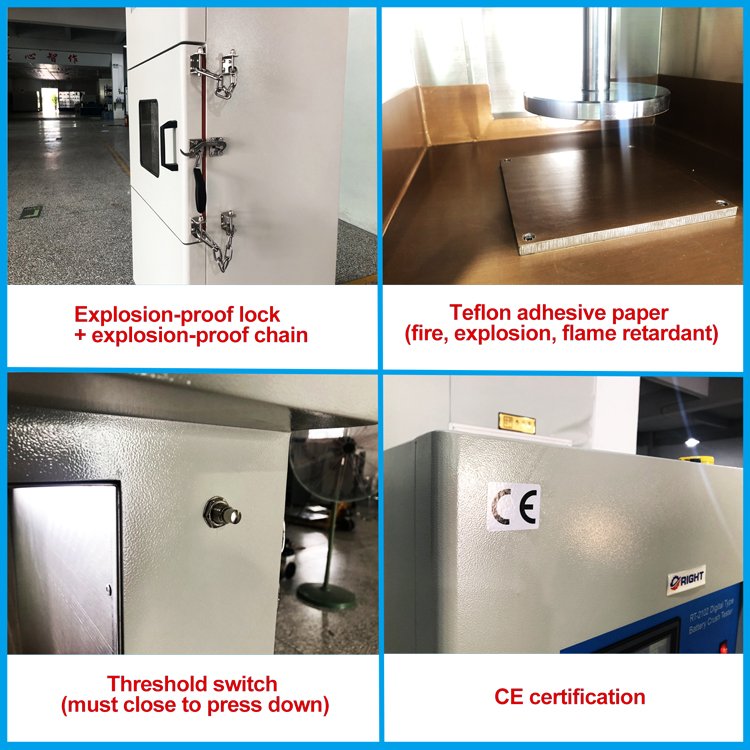

1. The wire is enclosed with a metal fire-proof cover, which is available to prevent the flame during the testing process.

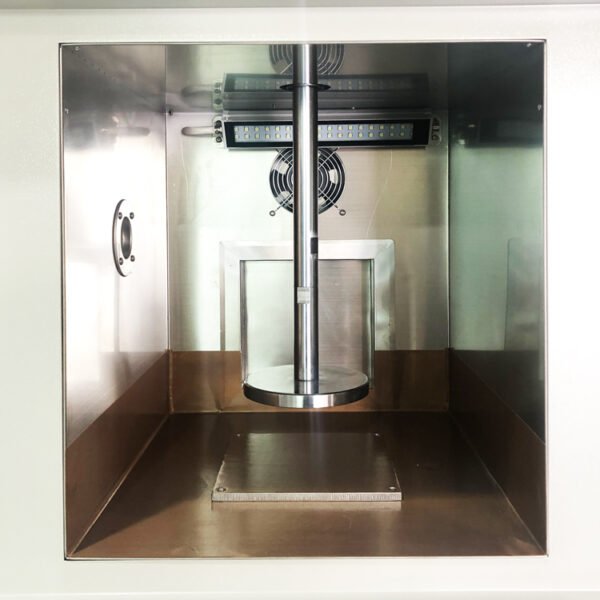

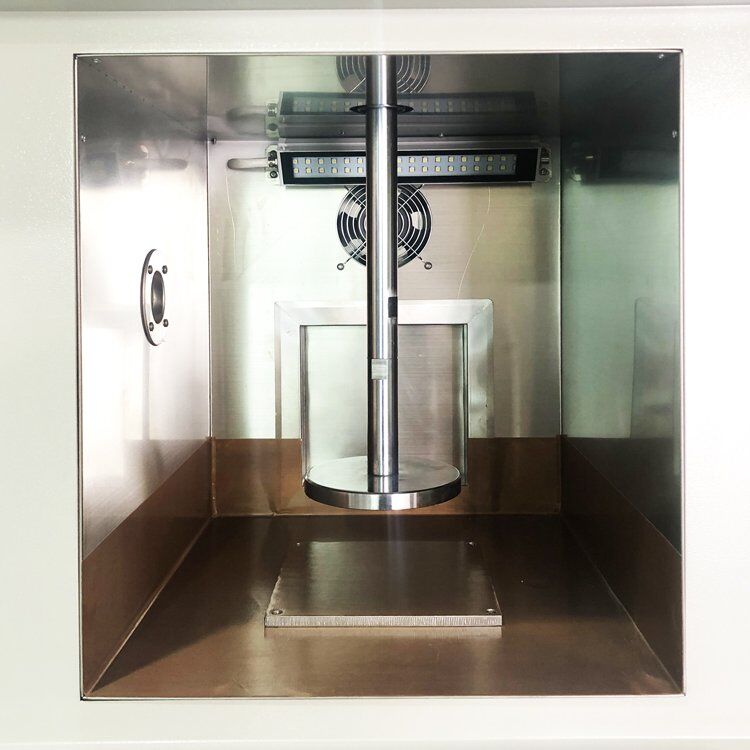

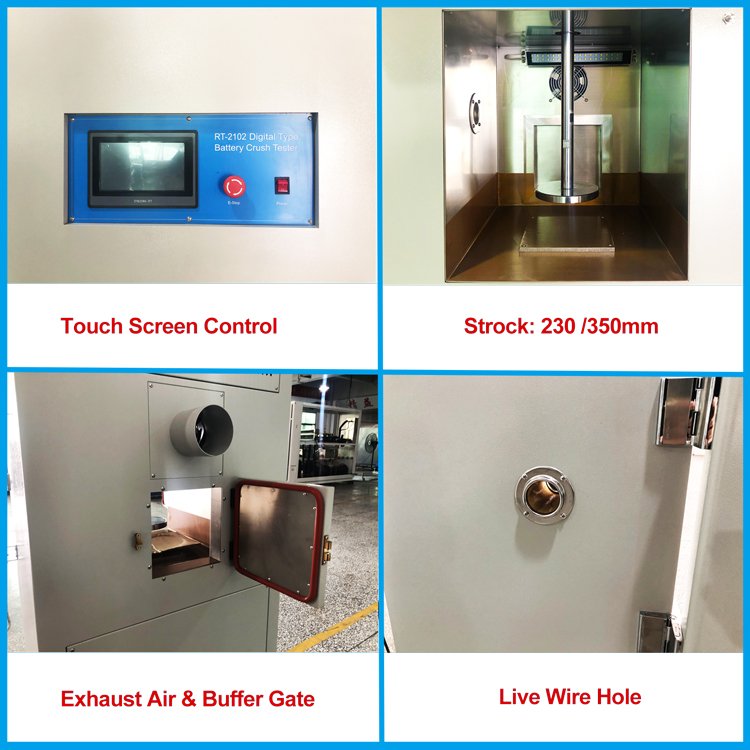

2. The lighting system is designed to observe the internal testing process;

3. Nail Penetration/Crush Force controllable within a range from 250N to 13KN, meets different standards;
4. Wire holes allow testing of internal temperature or air pressure, while the vent hole with an air blower can discharge the exhaust air.

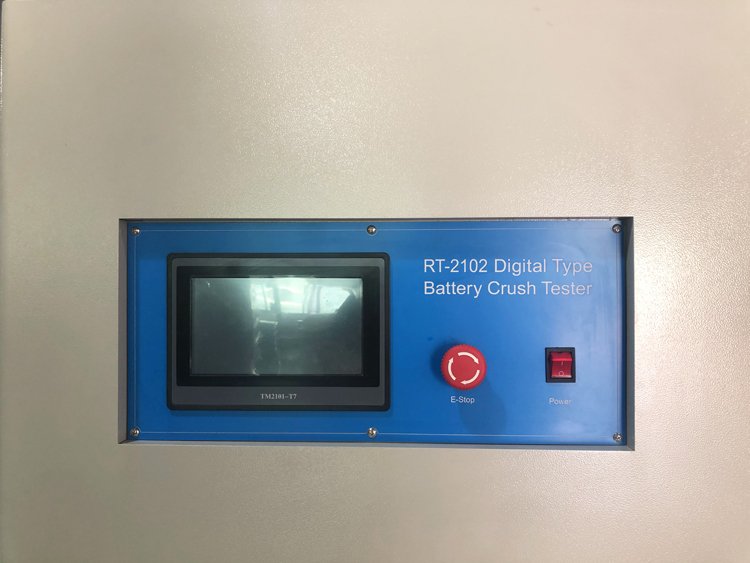

5. Control system employs an independent control cabinet & separated from the test chamber by a distance 1-2 meters, which can reduce the noise and improve safety.
Lab Battery Explosion-proof Crush Squeezing Testing Machine

Standard Compliance:

GB/T 8897.4-2002 (IEC 60086-4:2000) Primary batteries: Safety of lithium batteries
UL1642:2006 Safety standards (lithium battery) extrusion test
SN/T 1414.1-2004 Safety inspection of import and export secondary cells and batteries–Part 1: General
SN/T 1414.3-2004 Safety inspection of import and export secondary cells and batteries–Part 3: Secondary lithium cells
SJ/T 11169-1998 Standard for lithium batteries;
YD 1268- 2003 The safety specification and test method for lithium batteries and charger;
SJ/T 11170-1998 Standard for household and commercial batteries;
IEC62133-2012
UN 38.3
MT/T 1051-2007 Lithium-ion batteries for cap lamp
Lab Battery Explosion-proof Crush Squeezing Testing Machine

Standard Requirements:

UN 38.3 Standard Requirement:
38.3.4.6.3 Test Procedure – Crush (applicable to prismatic, pouch, coin/button cells and cylindrical cells not more than 20 mm in diameter)
A cell or component cell is to be crushed between two flat surfaces. The crushing is to be gradual with a speed of approximately 1.5 cm/s at the first point of contact. The crushing is to be continued until the first of the three options below is reached.
(a) The applied force reaches 13 kN ± 0.78 kN;
Example: The force shall be applied by a hydraulic ram with a 32 mm diameter piston until a pressure of 17 MPa is reached on the hydraulic ram.
(b) The voltage of the cell drops by at least 100 mV; or
(c) The cell is deformed by 50% or more of its original thickness.
Once the maximum pressure has been obtained, the voltage drops by 100 mV or more, or the cell is deformed by at least 50% of its original thickness, the pressure shall be released.
A prismatic or pouch cell shall be crushed by applying the force to the widest side. A button/coin cell shall be crushed by applying force to its flat surfaces. For cylindrical cells, the crush force shall be applied
perpendicular to the longitudinal axis.
Each test cell or component cell is to be subjected to one crush only. The test sample shall be observed for a further 6 h. The test shall be conducted using test cells or component cells that have not previously been
subjected to other tests.
38.3.4 6.4 Requirement
Cells and component cells meet this requirement if their external temperature does not exceed 170 °C and there is no disassembly and no fire during the test and within six hours after this test.
