Technical features:

1. The gear of the 10L mixer gearbox is made of high-grade chrome and special steel. It is finished by the high-level unit of West Germany. It has high precision, excellent assembly quality, not easy to wear and break, and can achieve the best transmission efficiency. And low music, the rate is very low, saving electricity.
2. Active control of temperature system and time control system, making it accurate and easy to understand, reaching heating or cooling can be quickly converted according to the set task temperature to ensure the best quality and best useful tasks for material mixing and dispersion rate.

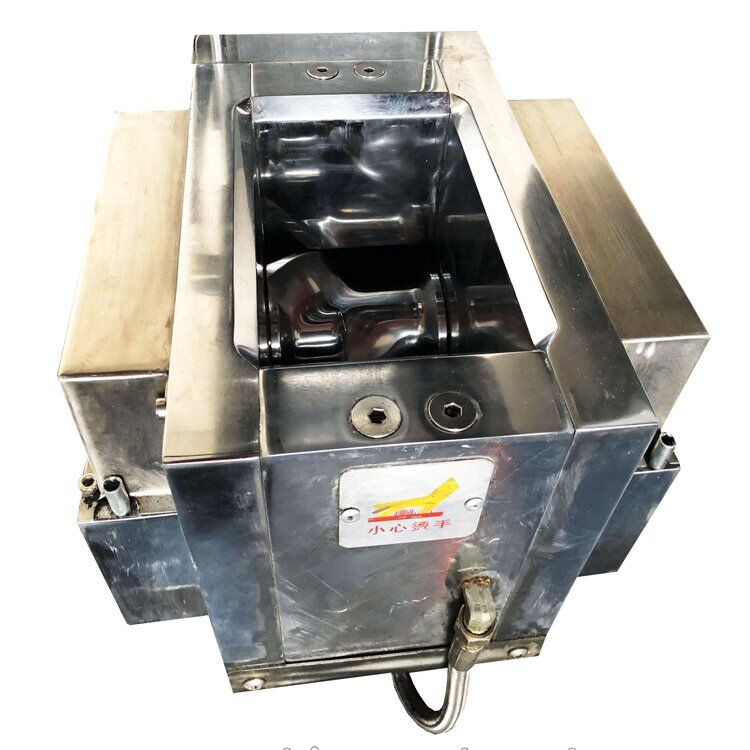

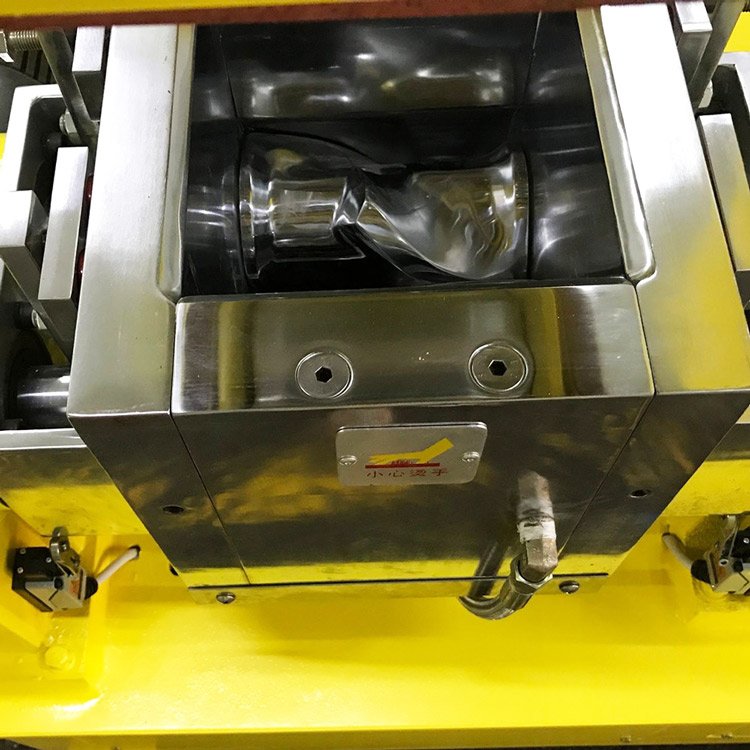

3.  10L mixer uses the “M-W” pressurized and cast mixing tank to not only consolidate the wear resistance, but also ensure that the material mixing average and physical properties change to the best results of the year-on-year mixing.
4. 10L mixer mixing tank is made of high-grade special steel. The surface is treated with wear-resistant steel. The surface is plated with hard chrome. The wear resistance is excellent, and the service life is more than 1-2 times than the traditional one. The mixing tank is divided into tilting type and lifting type, and the mixing shaft is leakproof. The dry mechanical shaft seal makes the cleaning color change easy and environmentally friendly.
5. According to the design characteristics of the rotor blade of the 10L internal mixer, the stirring rate is about 1/3 (about 5-7 minutes), which is about 3 times faster than the conservative roller machine.
6. According to the needs of the mixture, it can be divided into manual and active control, and the operation is easy.
7. High efficiency motor, good transmission, power saving and long life.

Product Details:

Speed reducer: adopts helical hard tooth surface reducer, with high torque, low noise, and a forced lubrication circulation system

Unloading: Driven by turning brake motor. 400W adopts brake motor

Flip angle: 110°~135°

Front and rear speed ratio: 1: 1.17

Front rotor speed: 47 revolutions per minute

Rear rotor speed: 34 revolutions per minute

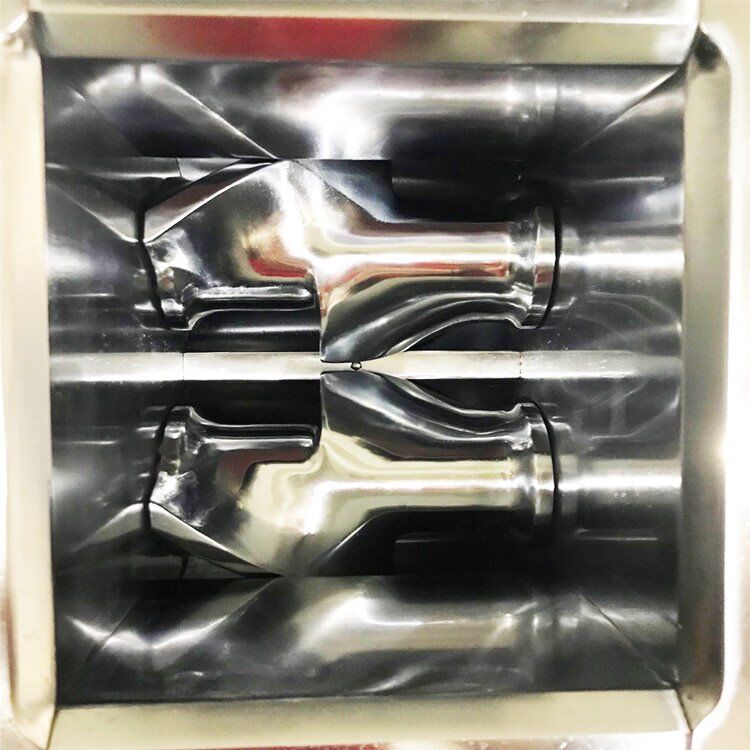

Rotor: Four-sided

Heating temperature control range: room temperature ~ 300℃

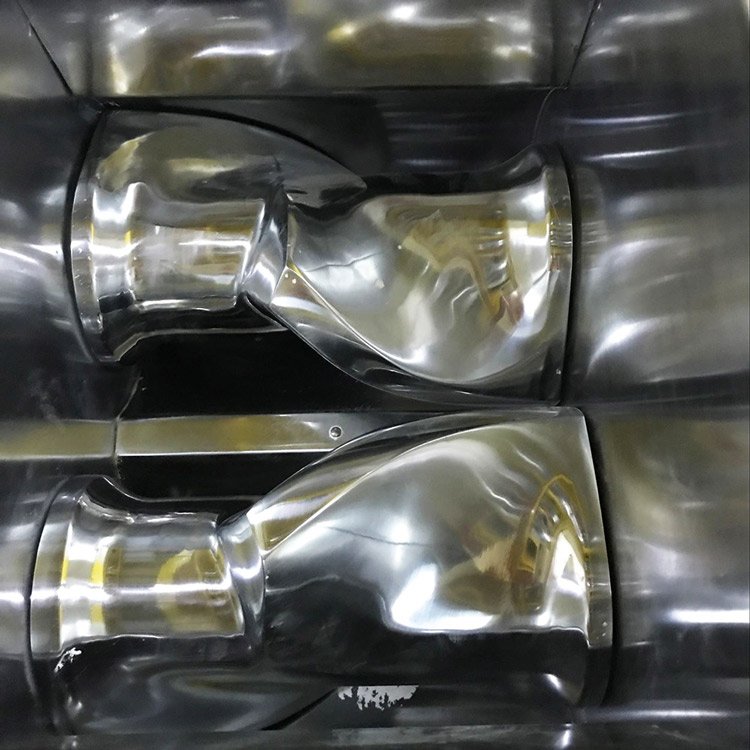

Anti-powder leakage device: Adopting secondary corner design, sealing ring adopts imported resin fiber, the mixing tank is made of alloy steel with hard chromium plating on the surface. Rotor material: alloy steel-high precision polishing-carburizing-hard chromium plating on the surface.

Rotor axis: 38CrMoALA nitriding surface treatment hardness HRC 58~65.

Pour gear and gear shaft: use alloy copper, and secondary treatment.

Heating part: The electric heating tube is imported from Taiwan, heating power: 6kW, the maximum temperature is 300℃, and the temperature is set according to the material requirements. Cooling method: Tap water circulating cooling, the rotor, mixing chamber, all have water cooling to assist in cooling.

Face wall: The surface of steel structure drilled hole is surfacing welded, hard chrome plated and polished.

Bracket: Steel structure, inner surface surfacing welding, hard chrome plating and polishing treatment

Top bolt: Cylinder drive, hard chrome plated on the surface

End face seal: The sealing ring is made of high wear-resistant material, no powder leakage

Feeding method: According to the needs of the compound, it can be divided into multiple feeding, manual and automatic control. Control mode: manual operation, semi-automatic, and automatic operation;
