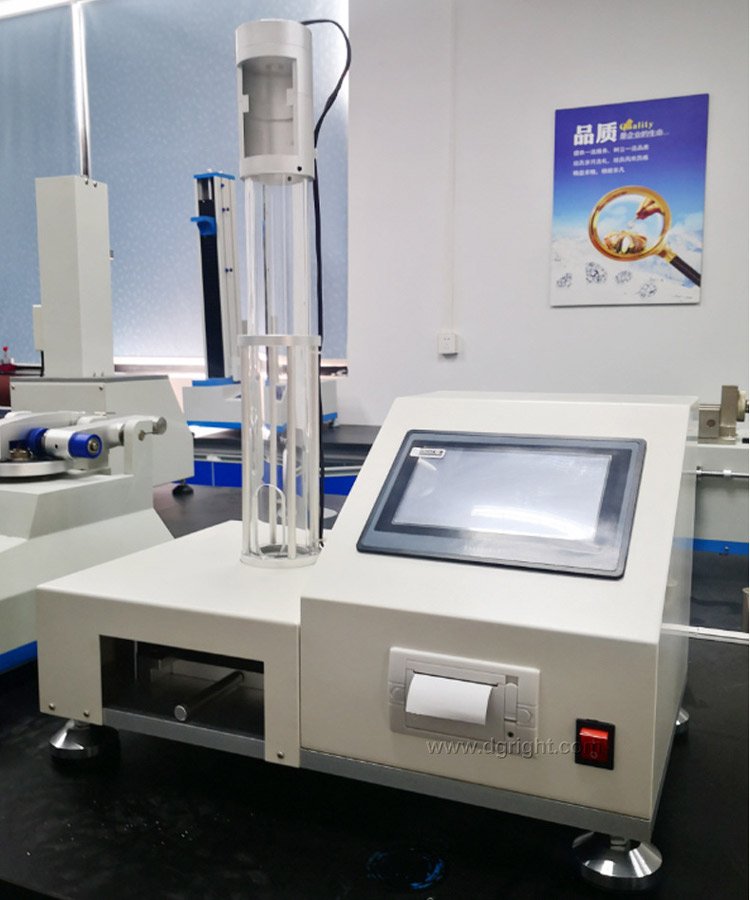

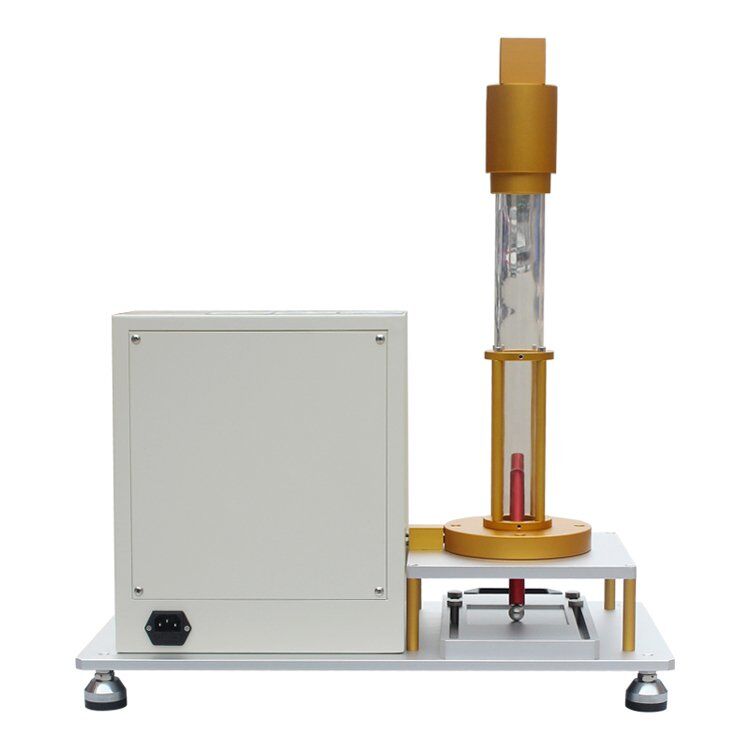

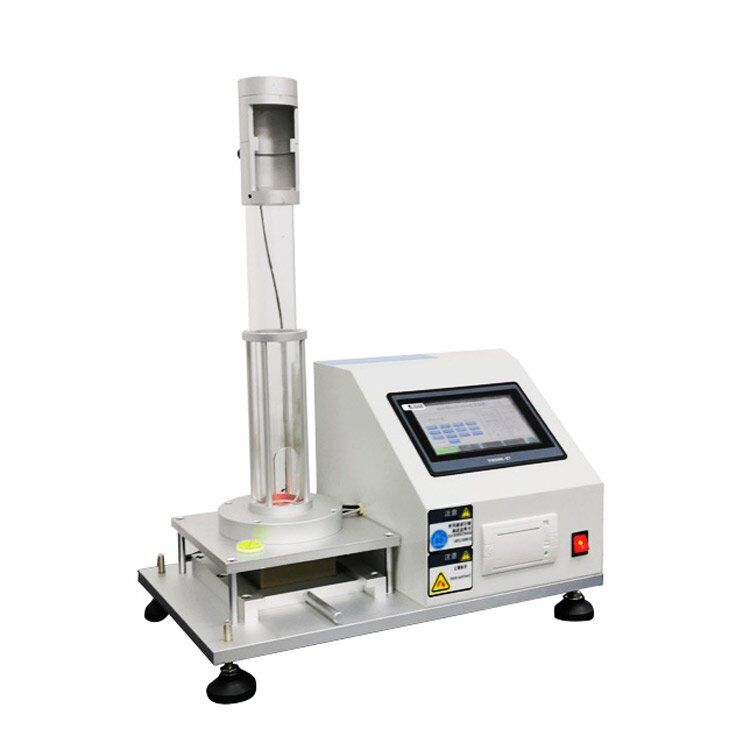

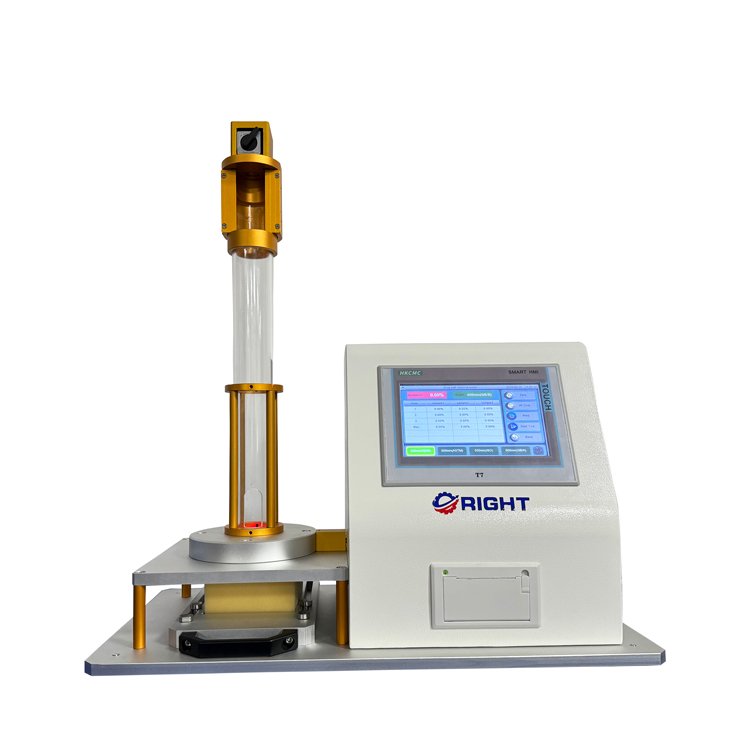

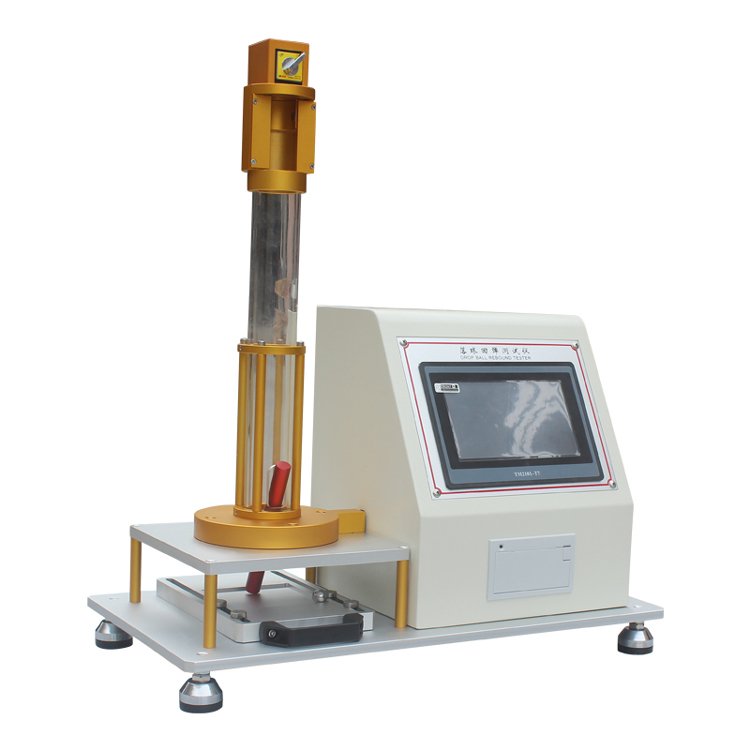

Sponge Foam Drop Ball Rebound Resilience Tester RT-714
Foam Material Drop Ball Rebound Resilience Test ISO 8307
Product Details:
1. GB can do 460 samples, 500 samples can make the U.S. standard. (National standard of similar
products can only do 460 samples)
2, LCD screen, the Chinese showed the same time increase the service life, easy to understand,
technicians can quickly grasp the method of operation. (Similar products for the digital display,
digital display only)
3. With printing, with printers. (Similar products without printing)
Product Details：
Description:
Foam Resilience Tester is used to determine flexible polyurethane foam rebound performance off the ball.
The instrument measures the resilience to rebound said foam rebound performance by determining the quality of a given ball diameter and height of free fall in the provisions of foam samples, calculating the maximum ball height and ball rebound height ratio of the percentage drop.
This machine uses a microprocessor control and LCD display and can print the test data.
This machine has the use of safe, reliable, and measurement accuracy.
Technical Parameter:
|
Model |
RT-714 Foam Resilience Tester |
|
Steel ball falling from |
460±0.5%mm(GB)500±0.5%mm(American standard) |
|
Ball diameter |
16±0.05 mm |
|
Precision ball drop resilience |
<1.5% |
|
Sample size |
100 mm(L) ×100 mm(W)× 50mm(H) |
|
Automatic calculation of the average rebound debugging |
|
|
Automatic calculation of the average rebound rate |
|
To Meet The Standard:
RT-714 Foam Resilience Tester designed and manufactured by GB/T6670-97
meet the American standard ASTM D3574 test standards and ISO8307
The Main Configuration And Accessories:
The host set (which includes the release of bodies to capture body height adjusting mechanism)

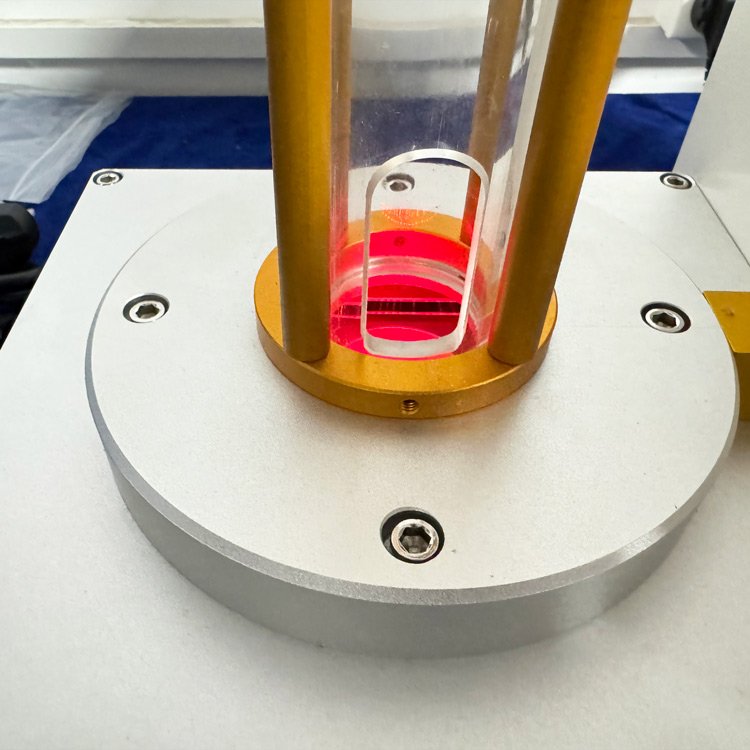

A set of electro-optical distance sensors
Control box set (LCD display)
A micro-printer (desktop)
