RT-503 6/12 Groups Bally Leather Flexing Resistance Testing Machine

RT-503 6/12 Groups Bally Leather Flexing Resistance Testing Machine - Image 4

RT-503 6/12 Groups Bally Leather Flexing Resistance Testing Machine - Image 5

RT-503 6/12 Groups Bally Leather Flexing Resistance Testing Machine - Image 6

RT-503 6/12 Groups Bally Leather Flexing Resistance Testing Machine - Image 7

Category 8. Leather Testing Machine

Additional information

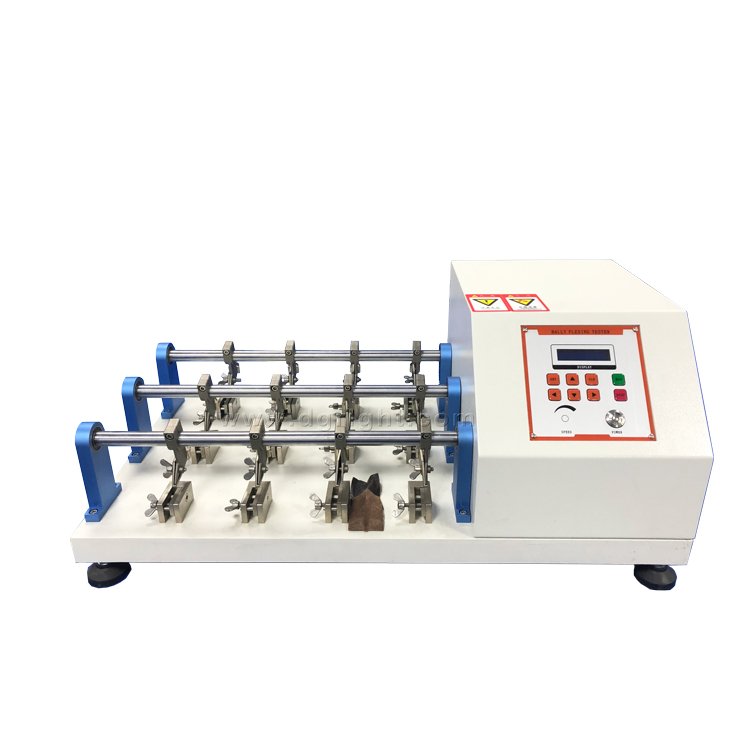

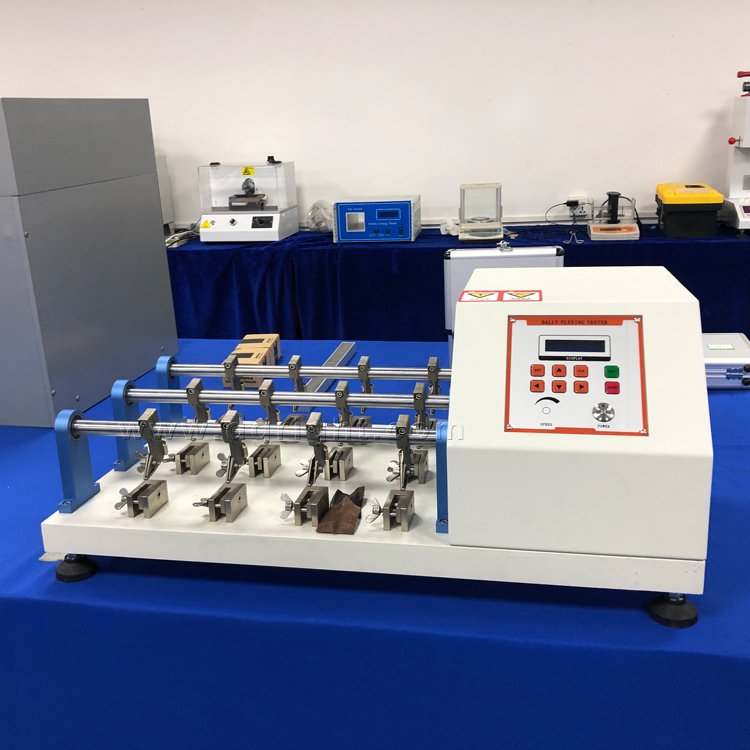

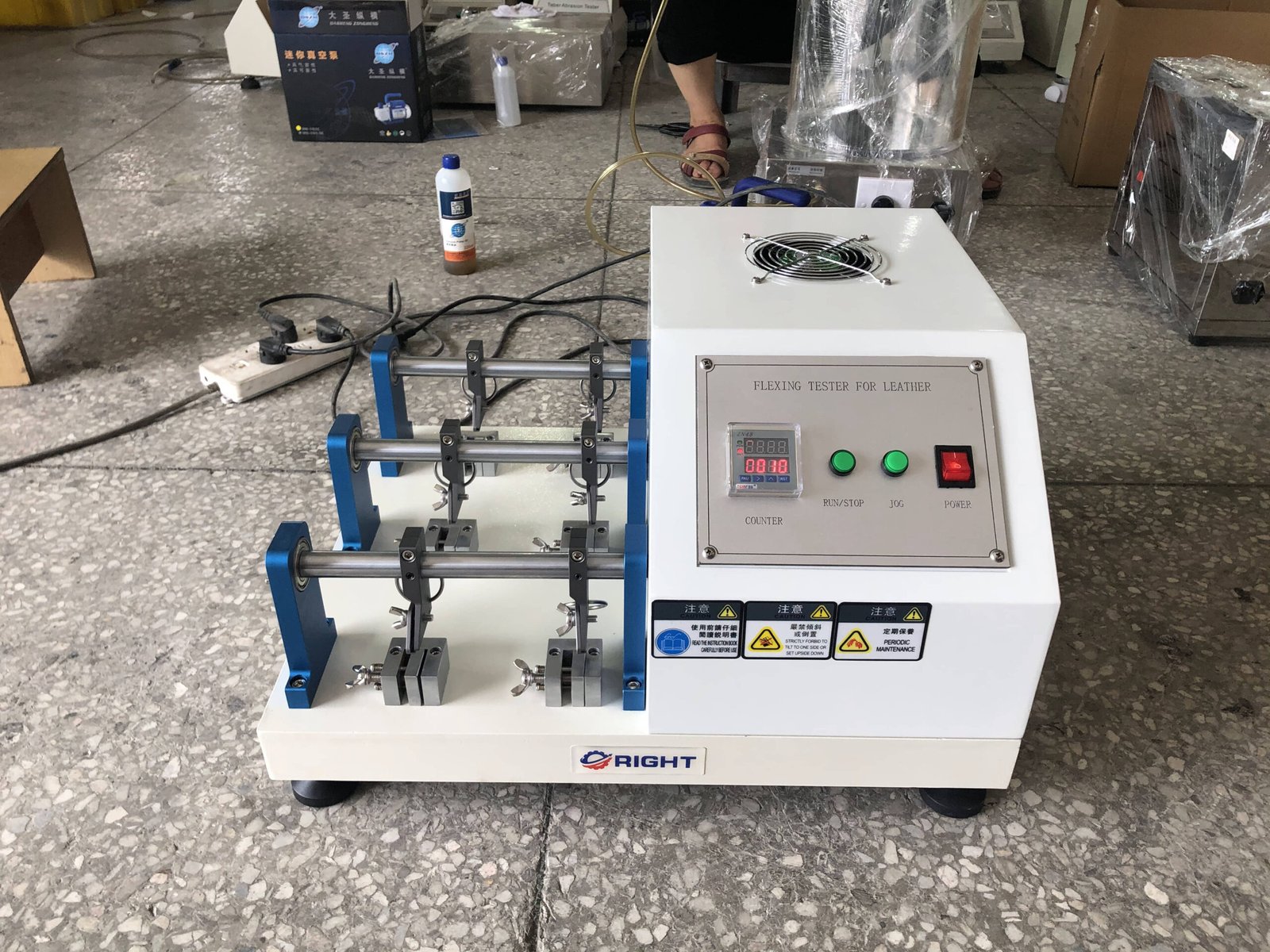

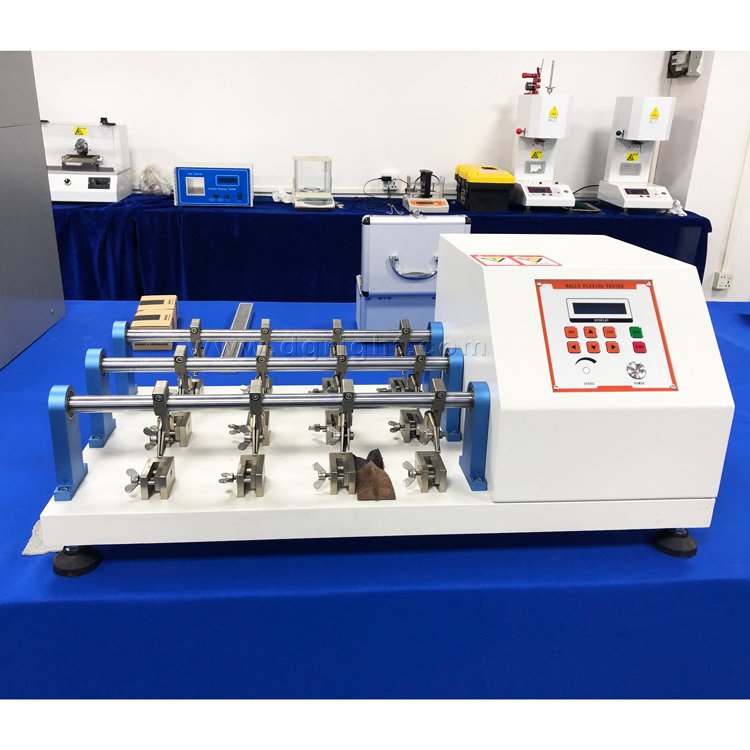

RT-503 Bally Leather Flexing Tester Leather Flexometer Machine

It determines the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.

Product Details：

Equipment summary:

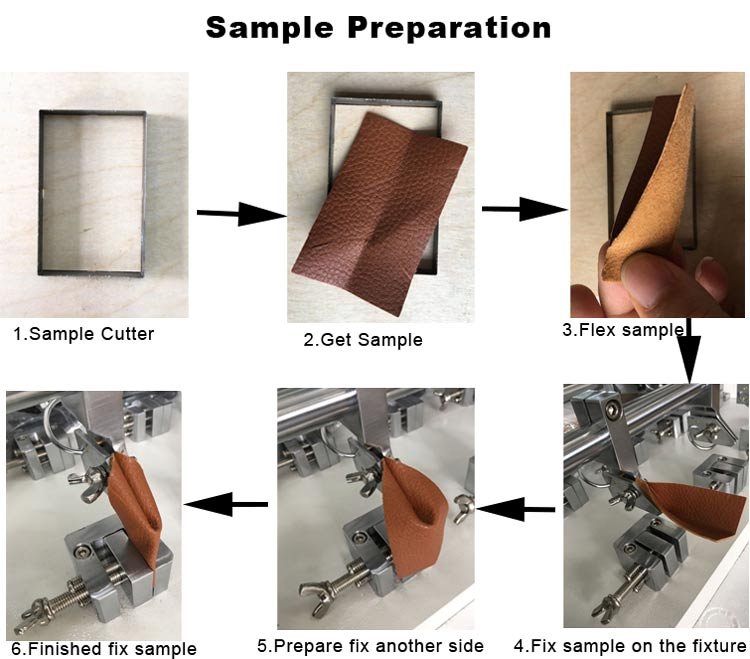

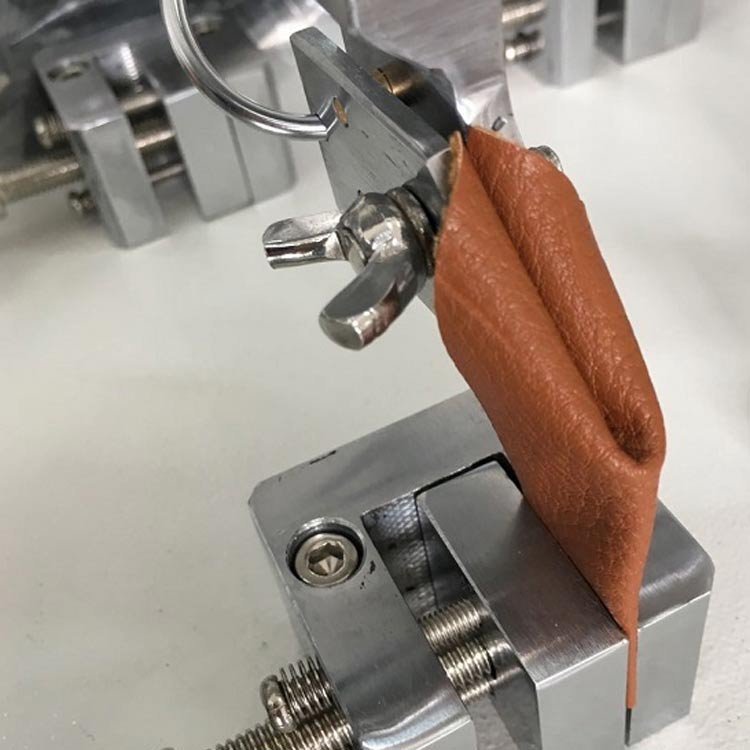

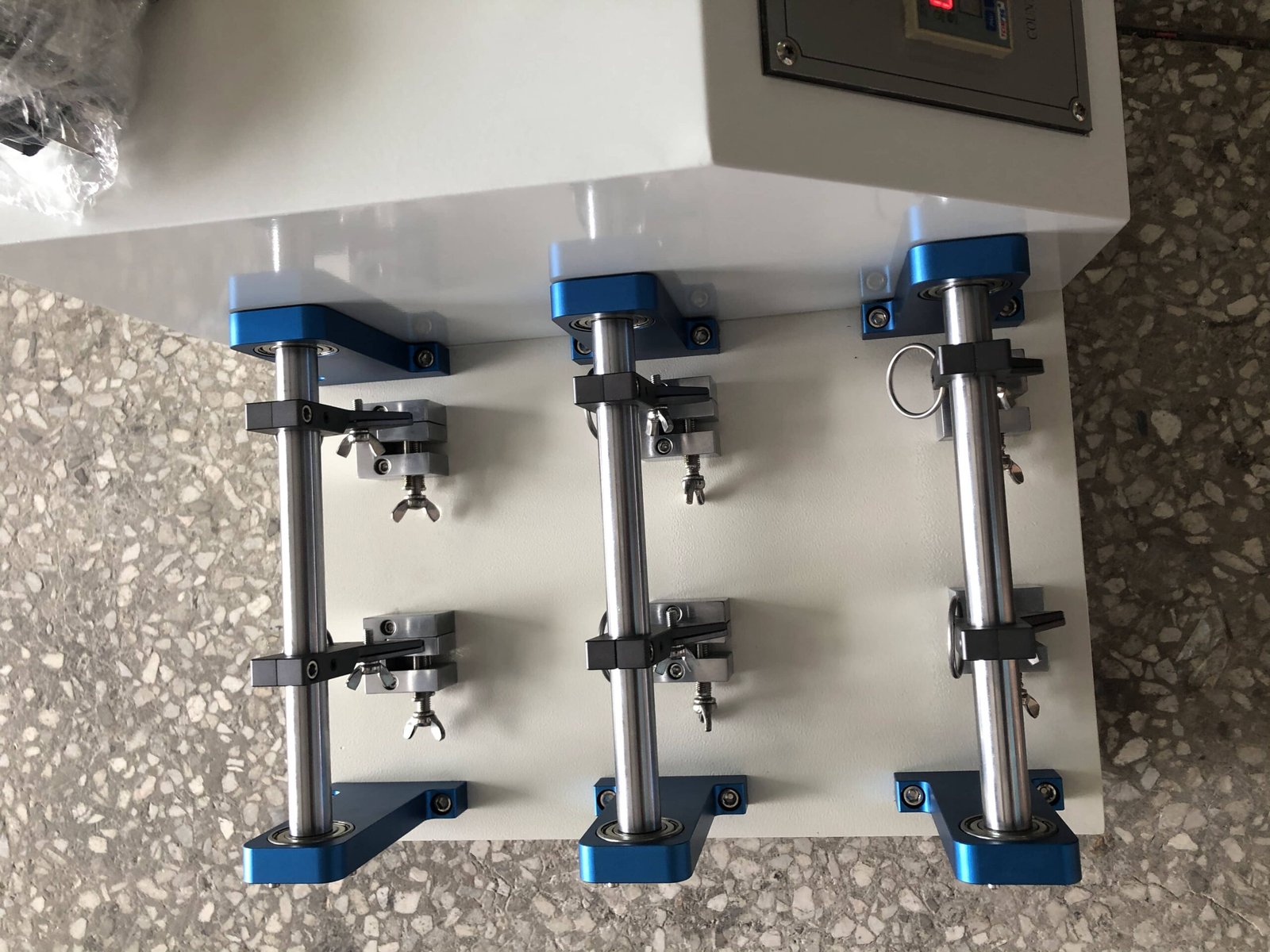

Leather flexing tester is used to test the folding nature for various leather and fabric, materials need be nipped both inside and outside,

twist and turn over and over again until a certain number, observe the damage of the tested materials, this machine applied to use in clothing,

shoes, bags and other thin material leather.

Corresponding standard:

According to the standard BS-3144,JIB-K6545

Applicable industry:

Used to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection,

arbitration and technical supervision departments.

Technical parameters:

Model	RT-503

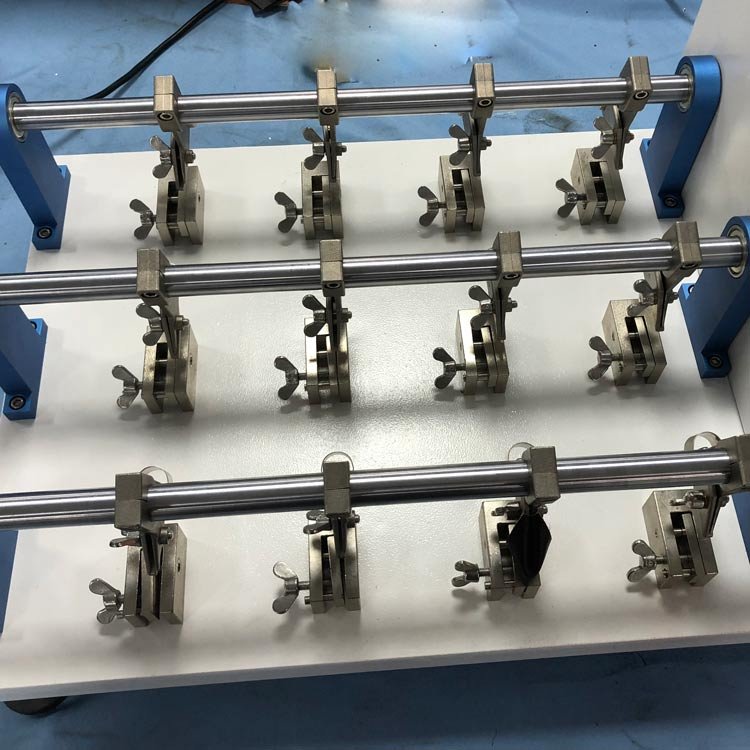

Fixture	(A) 6 group sets, (B) 12 group sets
Specimen size	70 × 45mm
Reverse angle	22.5 degree
Counter	LCD from 0 to 999,999
Volume	about 78 × 46 × 32cm
Machine Weight	(A) 60kg (B) 78kg
