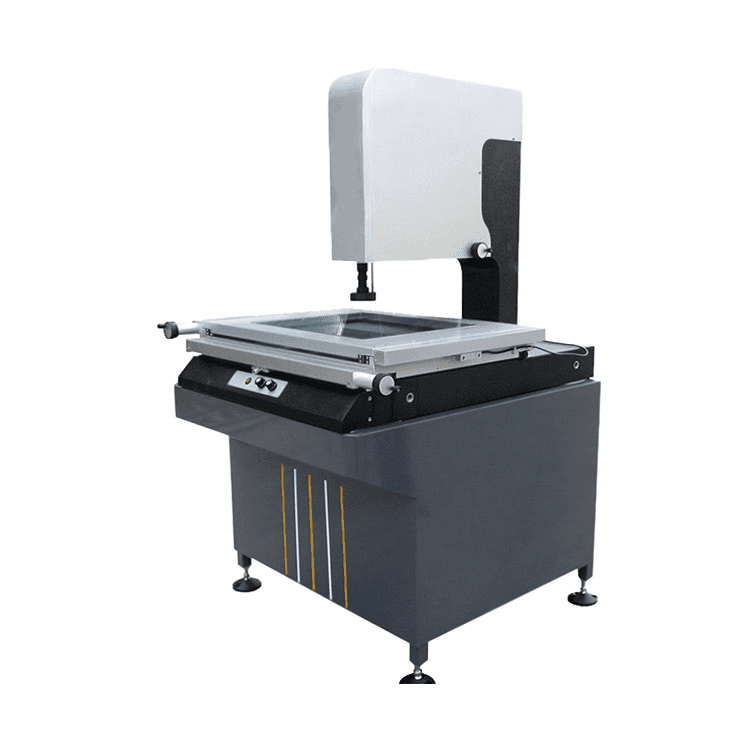

RT-1403 3D Manual Video Measuring Machine

Additional information

Product Details:

Manual Video Measuring MachineProduct description:

  • Be Applied to Mechanical ,,Electronic ,Plastic Fields etc.
  • Function of Data Processing,Displaying,Input,Output,
  • With RS-232 Interface
  • With Quick Measuring Software
  • Obviously assistant laser position system
  • UK Renishaw Probe



Technical Parameter

Model VMS-2020-3D VMS-3020-3D VMS-4030-3D VMS-5040-3D
Metal Table Size(mm) 470mmX470mm 570mmX470mm 710mmX610mm 910mmX710mm
Glass Table Size(mm) 240mm*240mm 340mmX240mm 440mmX340mm 540mmX440mm
X,Y-axis Travel(mm) 200X200 300X200 400X300 500X400
Z-axis Travel(mm) 75mm 75 75 75
Resolution(mm) 0.0005 0.0005 0.0005 0.0005
X,Y-axis Accuracy(um) ≤3+L/200 ≤3+L/200 ≤3+L/200 ≤3+L/200
Measuring Software Standard Standard Standard Standard
Net Weight(kg) 220 250 330 420
Dimensions(mm) 670x510x900 670x510x900 880x610x900 980x800x900
Video System 1/3“  Color CCD Camera ,     0.7~4.5 Zoom Lens,                              Video Total Magnification:30X~230X ,   Object View:7~1.1mm

LED adjustable Light Source

Probe UK Renishaw Probe
Power 180V~260V(AC),50HZ



Packing list:

Packing List Packing List Packing List
Quick Measuring Software CCD Camera Zoom lens 0.7~4.5X
Calibration Block Capture Card LED Light Source
Power,AV,RS232 Cable Scale Transfer Dell PC System





Optional Items:



Optional Items Optional Items Optional Items
Digital Read Out DP100 Navitar Click Zoom lens Rotary Table
Digital Read Out DP300 Navitar Coaxial Zom Lens Rotary Table
Foot-Switch Sony CCD Camera Working Cupboard
