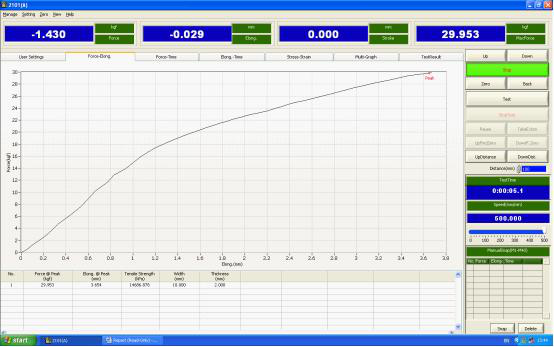

This machine is dedicated to test the mechanical properties of prestressed steel strand, The machine is equipped with Lenovo computers, HP printers, large gauge electronic extensometers, optical encoder, and full-featured general-purpose test software, you can easily complete the test function,Besides, equipt with a specialized steel strand extension to ensure that the specimen middle fracture,further improve the test success rate.You can check and print test results (force – displacement, force – deformation, stress – displacement, stress – deformation, force – time,distortion – time) six curve and related test data with the software self-test function that can self-diagnose problems, detail please review software instructions.Can test strand tensile strength can be measured to provide non-proportional extension strength, elastic modulus, elongation and other mechanical properties.It is industrial and mining enterprises, research institutes, universities, engineering quality supervision station ideal for test equipment and other departments.
Introduction:
This machine is dedicated to test the mechanical properties of prestressed steel strand,The machine is equipped with Lenovo computers, HP printers, large gauge electronic extensometers, optical encoder, and full-featured general-purpose test software, you can easily complete the test function,Besides, equipt with a specialized steel strand extension to ensure that the specimen middle fracture,further improve the test success rate.You can check and print test results (force – displacement, force – deformation, stress – displacement, stress – deformation, force – time,distortion – time) six curve and related test data with the software self-test function that can self-diagnose problems, detail please review software instructions.Can test strand tensile strength can be measured to provide non-proportional extension strength, elastic modulus, elongation and other mechanical properties.It is industrial and mining enterprises, research institutes, universities, engineering quality supervision station ideal for test equipment and other departments.
Host::

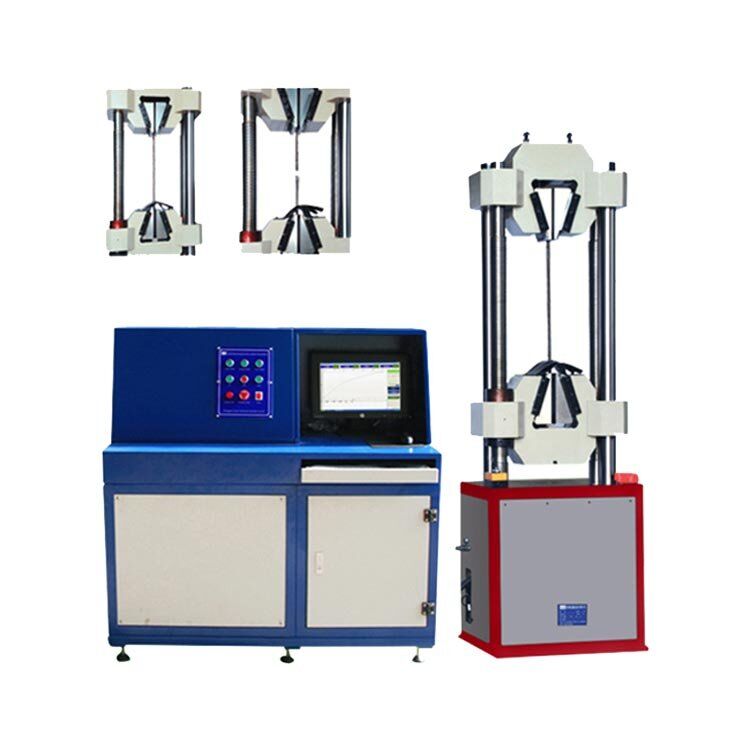

Adopt oil cylinder under mounted type host, stretching space is at the top of host, compression test space is between the at the work table and the crossbar .
Transmission system:
Down beam go up and down by the use of motor reducer, chain drive mechanism, vice screw drive, to achieve tensile, compression of space to adjust.
Hydraulic System:
The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.
Control system:
Safety protection device:

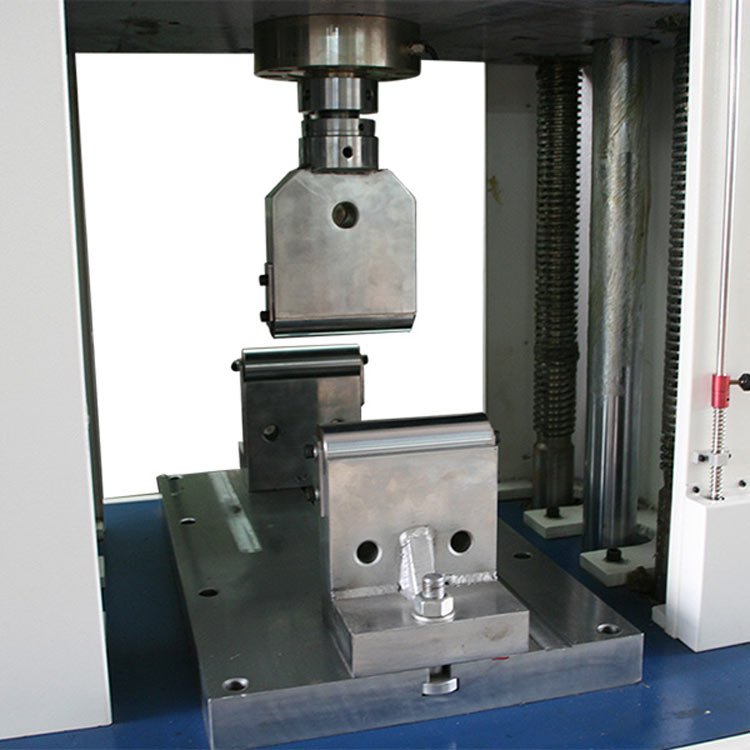

Fixture:

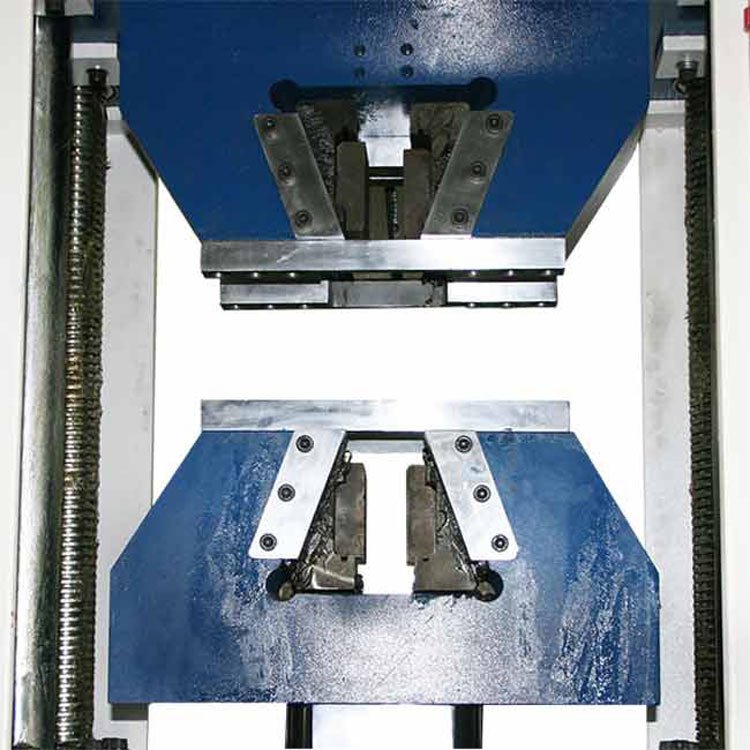

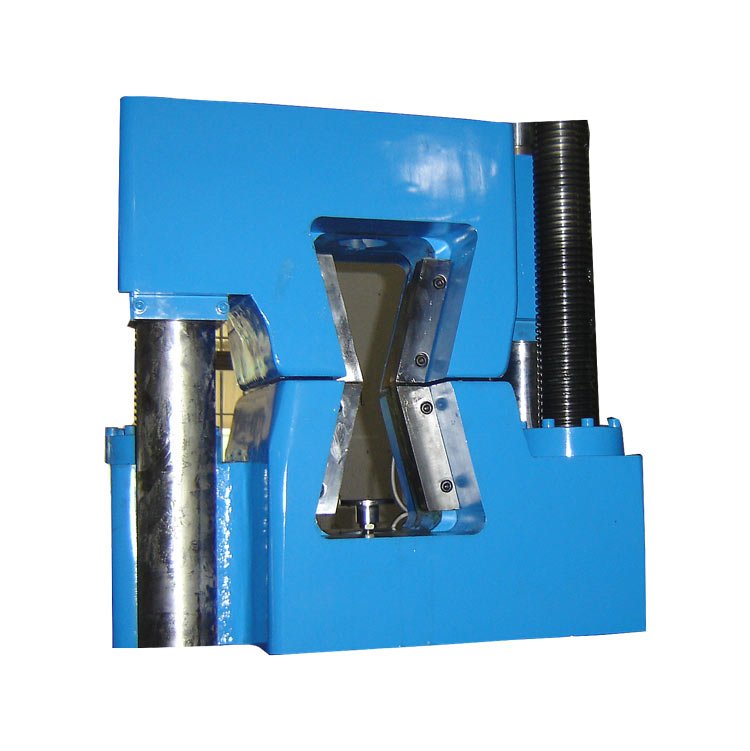

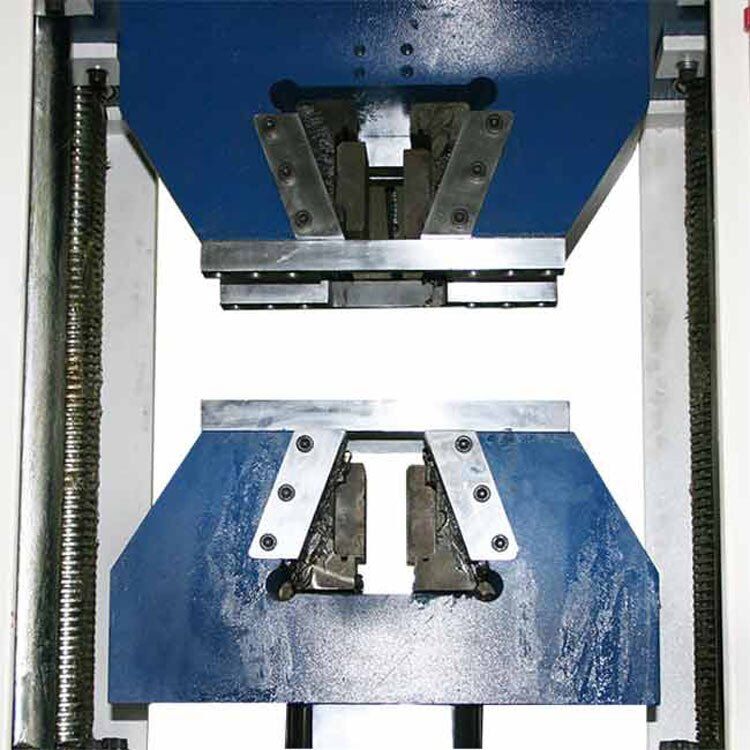

Whole set fextures include:stretch fixture.
Main performance technical specifications:
Max load | 600kN | 1000kN | |
Test force measuring range | 50~1000kN | ||
Test Force showed the relative error | ≤indicating value±1% | ||
Test Force Resolution | 0.03kN | ||
Displacement measurement resolution | 0.01mm | ||
Deformation measurement accuracy | 0.01mm | ||
Maximum tensile test space | 1000mm | ||
Compression space | 602mm | ||
Piston stroke | 150mm | ||
Diameter of round specimen clamp jaw | 15.20mm(Other specifications reprovision ) | ||
Maximum move speed of piston | 50mm/min | ||
Clamping method | Automatic clamping | ||
Host machine outside size mm | 720×580×2350 | 890×660×2500 | |
Force measurement cabinet outside dimensions mm | 1000×700×1400 | 1000×700×1400 | |
Space stretching from the two pillars distance | 450mm | 550mm | |
Net weight | 2600KG | 3000KG |
